16 of 23 AII 38576-38846 (0802) © 2008 American Honda Motor Co., Inc. – All Rights Reserved.

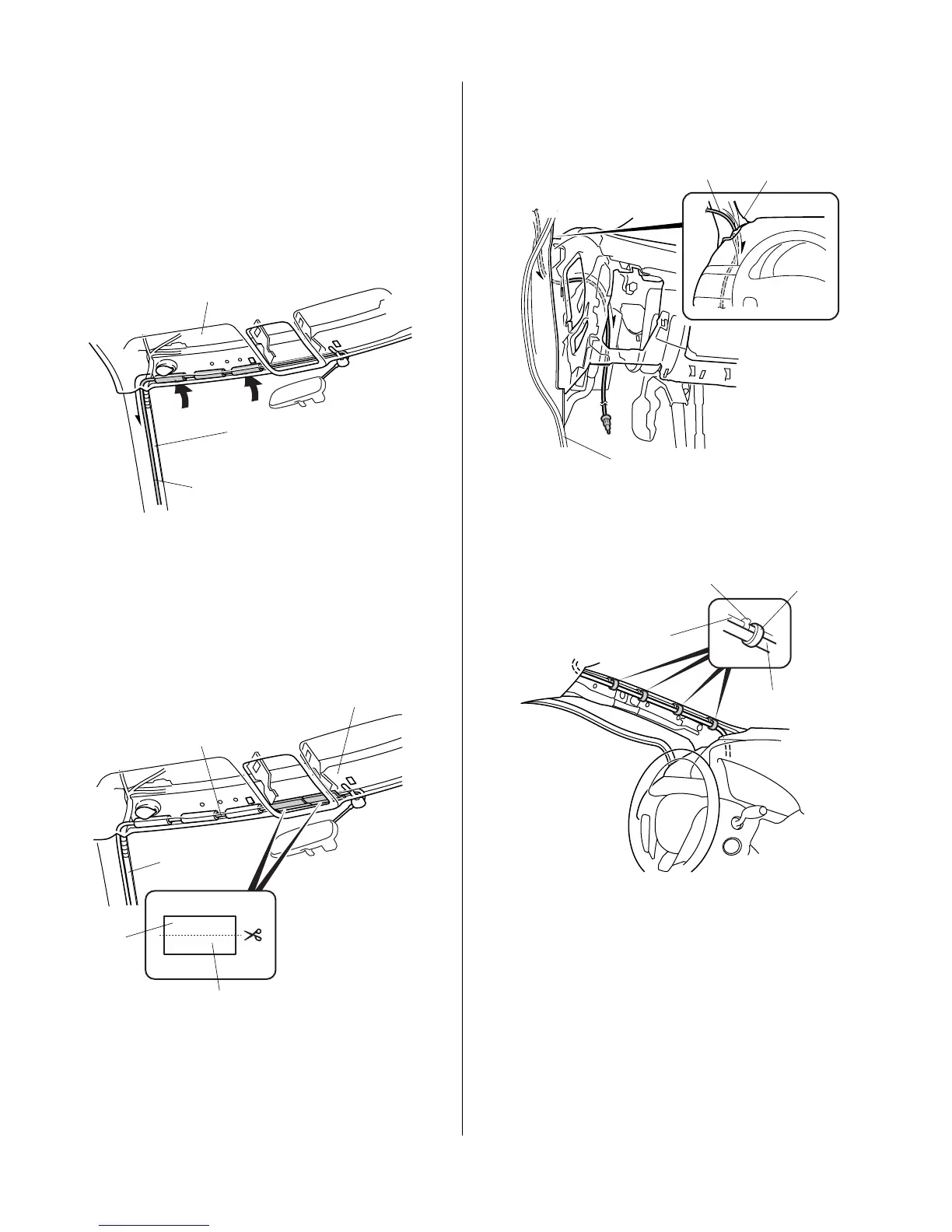

59. Pull away the weatherstrip, and route the antenna
cable down and under the dashboard through the
front pillar opening.
60. Secure the antenna cable to the vehicle harness with
four wire ties.
ANTENNA
CABLE
FRONT PILLAR
TRIM OPENING
WEATHER STRIP
ANTENNA
CABLE
4 WIRE TIES
VEHICLE CLIP
VEHICLE
HARNESS
55. Remove the adhesive backing from the antenna.
Insert the antenna plate over the roof lining, and
attach the antenna to the front window aligning it with
the template.
56. Remove the template.
57. Gently pull down the roof liner, and tuck the antenna
cable under it.
58. Using scissors, cut one foam cushion tape in half.
Route the antenna cable towards the driver’s side of
the vehicle, and secure the antenna cable to the roof
panel with the two halves of foam urethane tape.
VEHICLE
HARNESS
ROOF LINING
ANTENNA
CABLE
ANTENNA
CABLE
VEHICLE PANEL
Cut.
URETHANE
TAPE
VEHICLE
HARNESS
To Next Page
