Honda 08E91-E22-100A - Page 17

© 2008 American Honda Motor Co., Inc. – All Rights Reserved. AII 38576-38846 (0802) 17 of 23

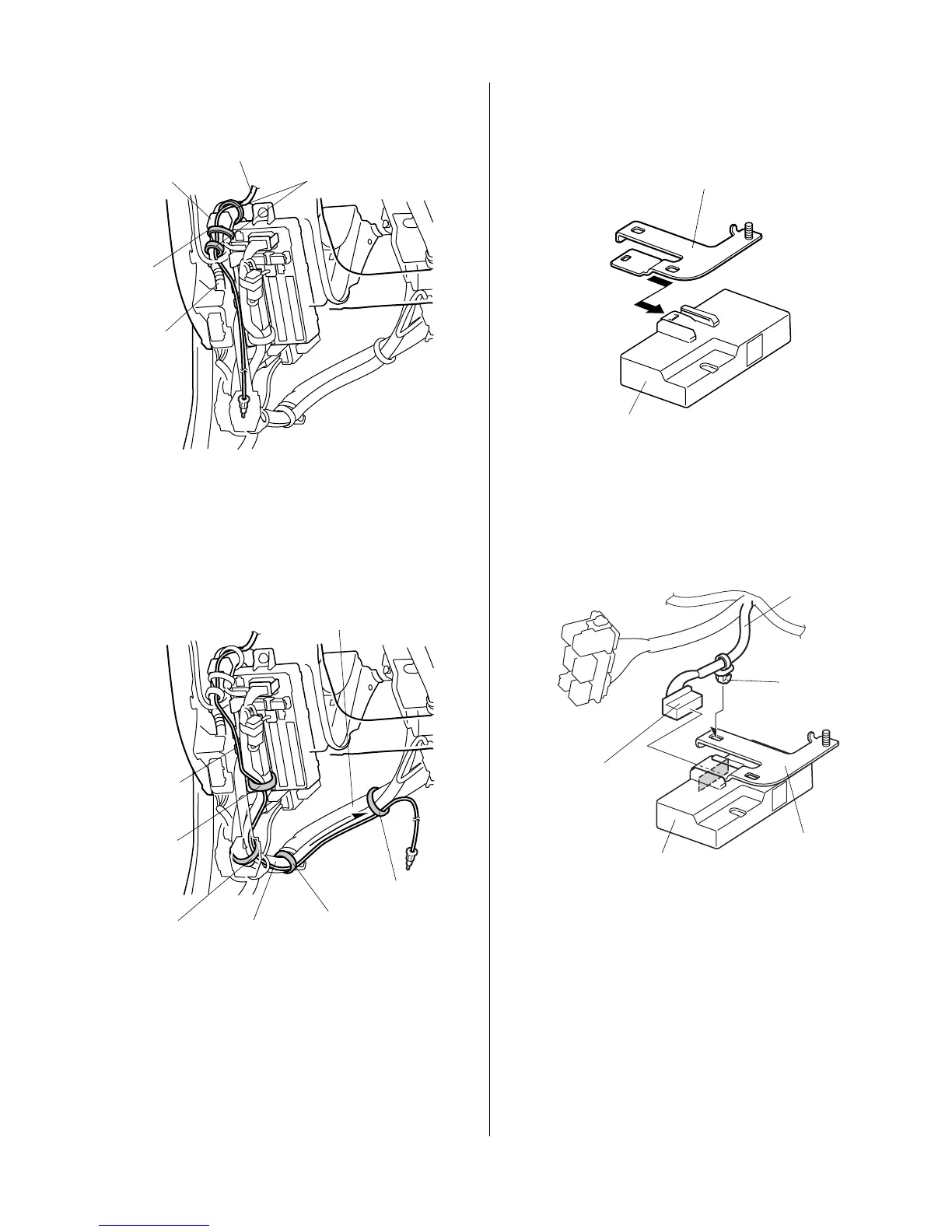

61. Secure the vehicle 5-pin connector (disconnected in
step 40) to the vehicle harness with one wire tie.
62. Secure the antenna cable with two wire ties to the
vehicle harness.
63. Route the antenna cable along the engine starter
harness.
64. Secure the antenna cable to the engine starter
harness with the four wire ties you loosely attached.
6D1844AY
2 WIRE TIES
ANTENNA
CABLE
VEHICLE
5-PIN
CONNECTOR
WIRE
TIE
VEHICLE
HARNESS
6D1845BY
ANTENNA
CABLE
ENGINE
STARTER
HARNESS
WIRE TIE
(Loosely
attached.)
VEHICLE
HARNESS
WIRE TIE
(Loosely
secured.)
WIRE TIE
(Loosely
attached.)
WIRE TIE
(Loosely
attached.)
Installing the Control Unit
65. Install the control unit bracket to the control unit.
66. Plug the engine starter harness 28-pin connector
into the control unit.
6D18461Y
CONTROL UNIT
BRACKET
CONTROL
UNIT
6D1847BY
CONTROL UNIT
BRACKET
CONTROL
UNIT
CLIP
28-PIN
CONNECTOR
ENGINE STARTER
HARNESS
