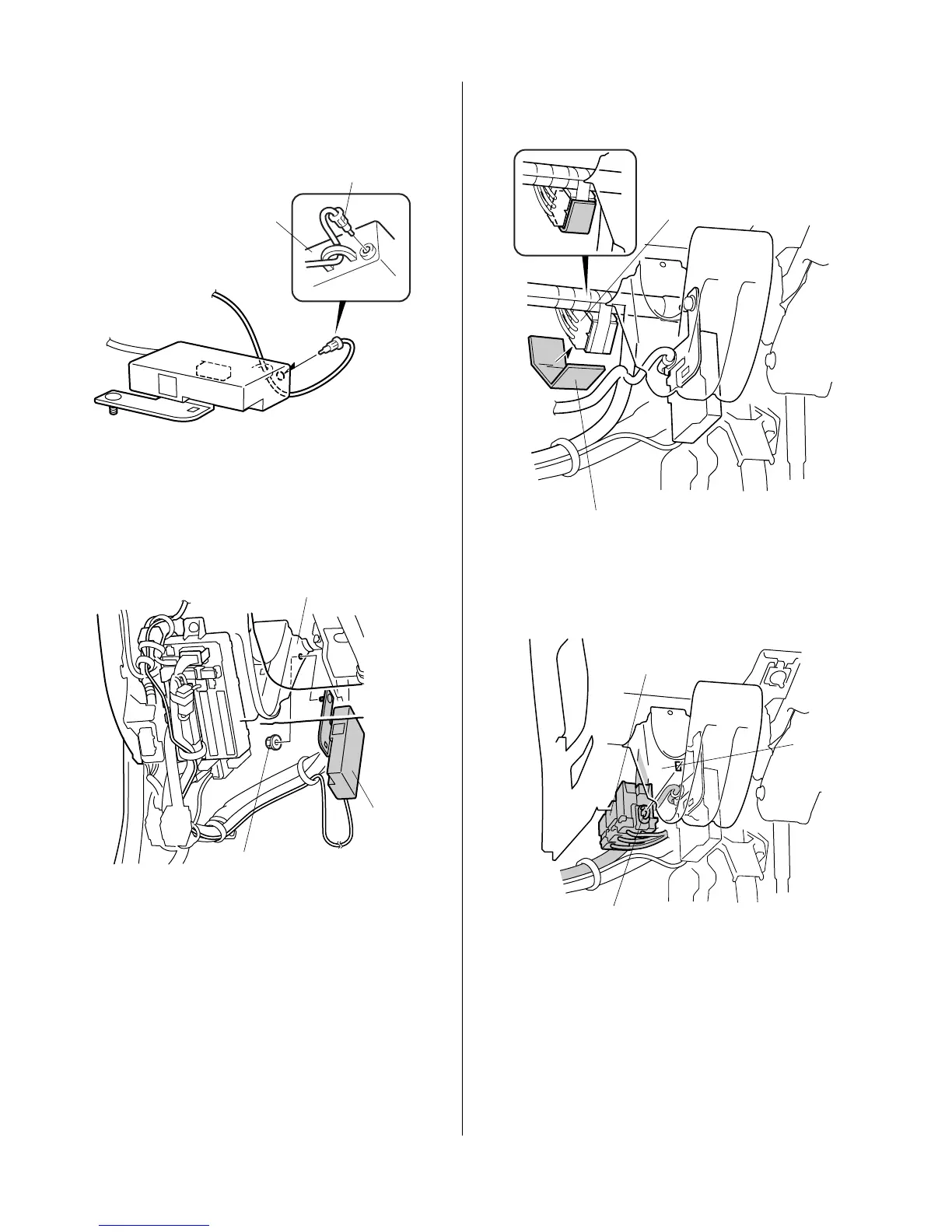

67. Install the clip from the engine starter harness to the
control unit bracket.
68. Plug the antenna terminal into the control unit.
69. Secure the control unit to the vehicle frame using the
flange nut.
6D18480Y
ANTENNA
TERMINAL
CONTROL
UNIT
6D1849AY
VEHICLE
FRAME
FLANGE
NUT
CONTROL
UNIT
70. Wrap the urethane tape around the vehicle
connector.
71. Attach the engine starter relay block clip to the
vehicle frame.
732901CY
VEHICLE
CONNECTOR
URETHANE TAPE
6D18601Y
ENGINE STARTER
RELAY BLOCK
ENGINE STARTER
HARNESS RELAY
BLOCK CLIP
VEHICLE
FRAME
