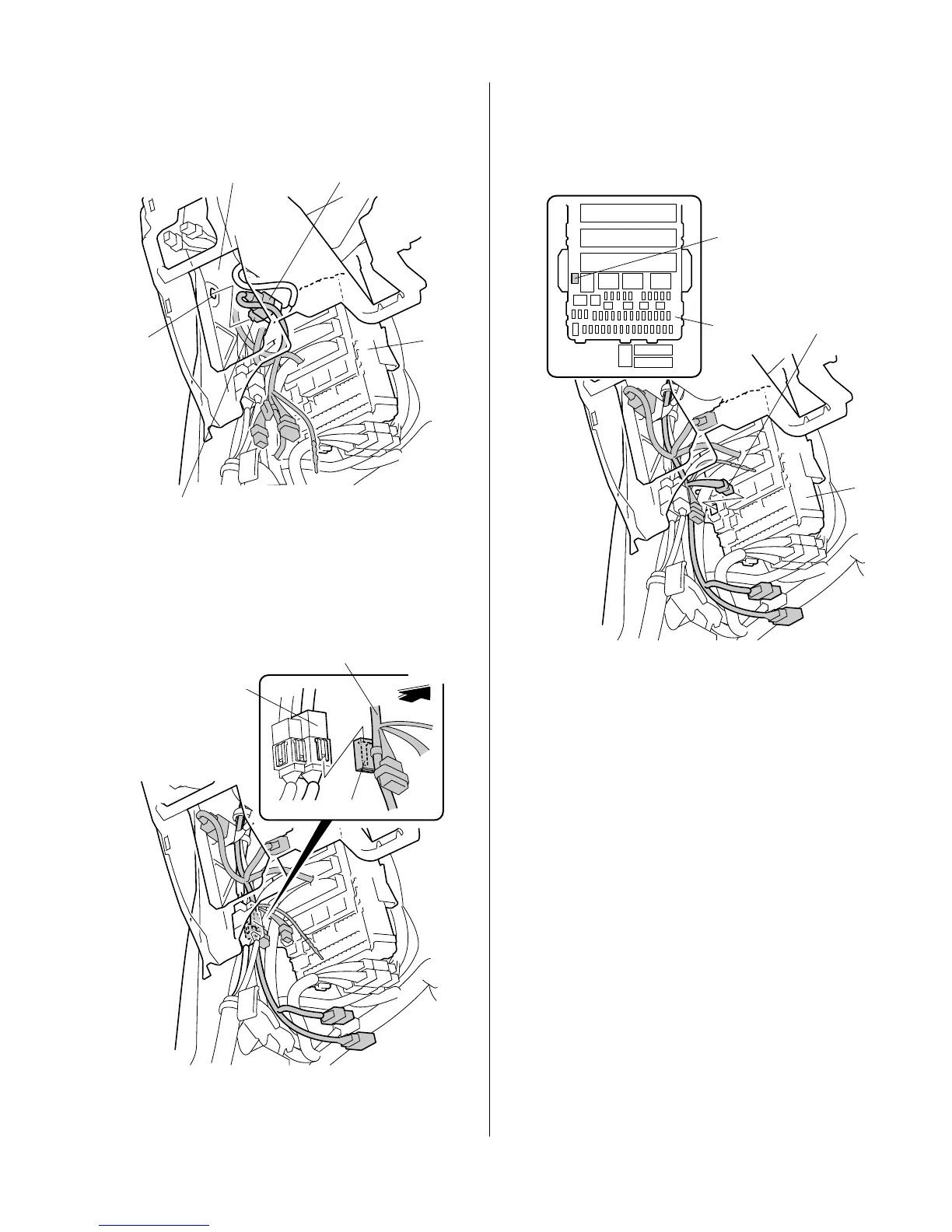

51. Attach the connector clip from the engine starter
har ness 5-pin connector to the hole in the vehicle
panel.
Q0N1901BG
ENGINE STARTER HARNESS
5-PIN CONNECTOR
FUSE
BOX
VEHICLE
PANEL
HOLE
CONNECTOR CLIP
52. Slide the other clip on the engine starter harness
onto the vehicle connector. Note the direction and
the orientation of the clip.
Q0N1902BG
ENGINE STARTER
HARNESS
CLIP
VEHICLE
CONNECTOR
FRONT
If the vehicle is equipped with the accessory fog lights, go
to step 54; otherwise, continue with step 53.
53. Plug the engine starter harness 4-pin connector into
the
fuse box. Go to step 56.
Q0N1903BG
FRONT VIEW
FUSE
BOX
FUSE
BOX
Plug in
here.
ENGINE STARTER
HARNESS 4-PIN
CONNECTOR
