Honda 08E91-E22-101A - Page 14

14 of 27 AII 13148-49239 (1302) © 2013 American Honda Motor Co., Inc. – All Rights Reserved.

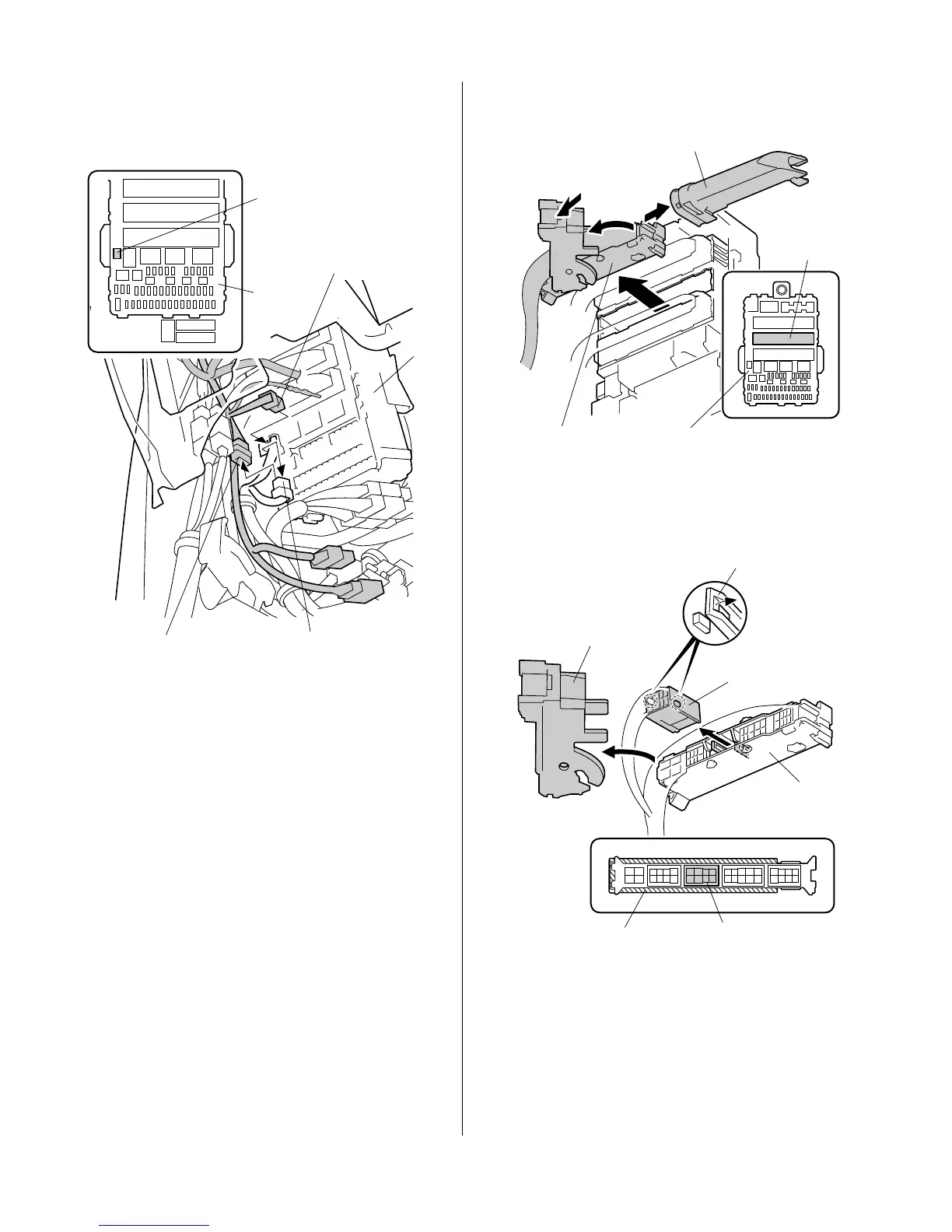

54. Unplug the fog light 4-pin connector from the fuse
box, and plug it into the engine starter harness 4-pin
connector.
Q0N1904BG
FRONT VIEW
FUSE
BOX
FUSE
BOX
Plug in
here.
ENGINE STARTER
HARNESS 4-PIN
CONNECTOR
FOG LIGHTS
4-PIN
CONNECTOR
ENGINE STARTER
HARNESS 4-PIN
CONNECTOR
55. Plug the remaining engine starter harness 4-pin
connector into the fuse box.
56. Unplug the vehicle 38-pin connector from the fuse
box as shown.
Q0N1905AG
VEHICLE 38-PIN
CONNECTOR
FUSE
BOX
FRONT VIEW
VEHICLE 38-PIN
CONNECTOR
CONNECTOR COVER
57. Remove the connector cover.
58. Remove the lever from the vehicle 38-pin connector
as shown.
QA21701AG
VEHICLE 38-PIN
CONNECTOR
LEVER
Remove.
VEHICLE
38-PIN
CONNECTOR
2 TABS
8-PIN
CONNECTOR
HARNESS SIDE VIEW
8-PIN
CONNECTOR
59. Remove the 8-pin connector from the vehicle 38-pin
connector (two tabs).
