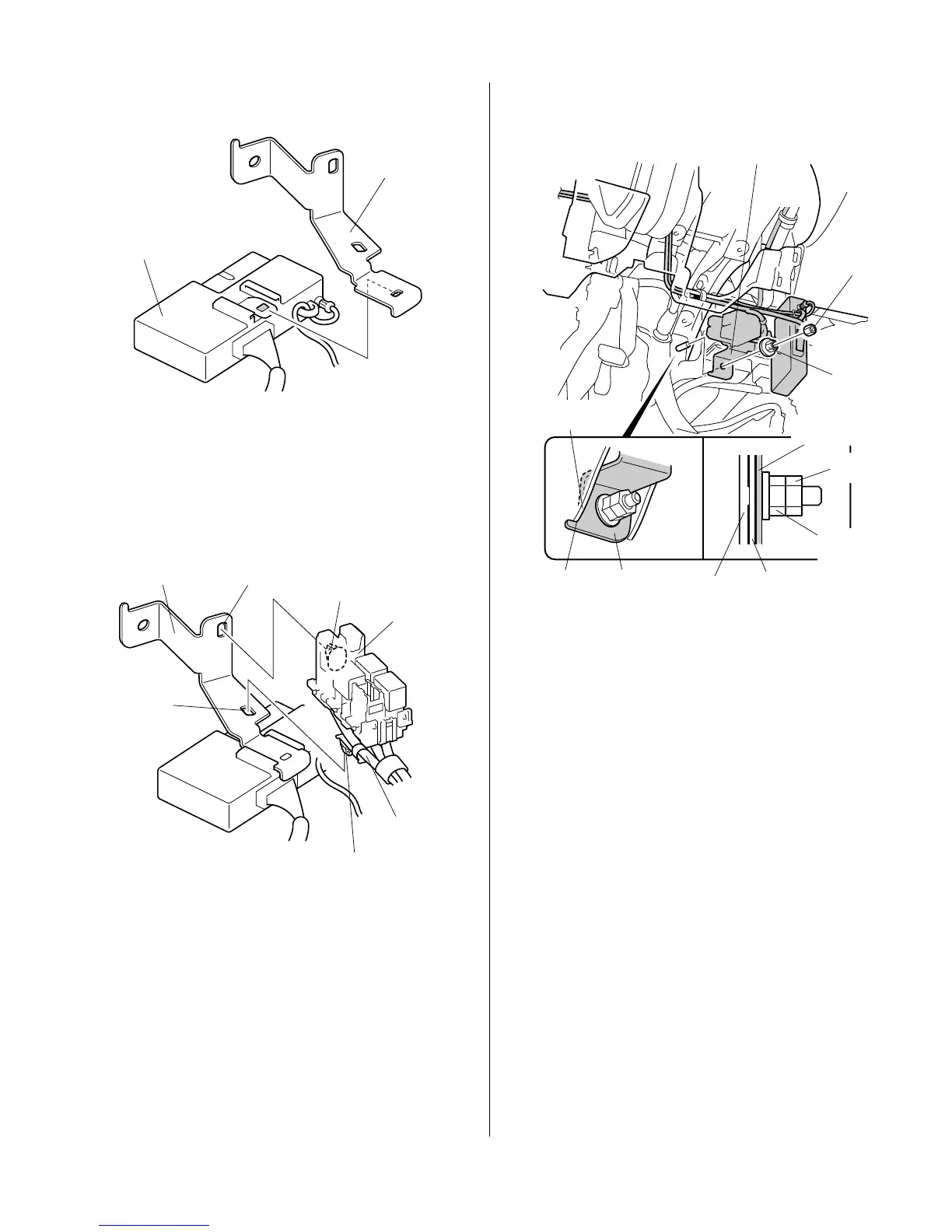

89. Install the control unit bracket to the control unit.
Q0N2307BG
CONTROL
UNIT
CONTROL UNIT
BRACKET
90. Secure the clip from the engine starter harness fuse
block, and the clip from the engine starter harness
into the holes in the control unit bracket.
Q0N2308BG
CONTROL UNIT
BRACKET
ENGINE
STARTER
HARNESS
HOLE
CLIP
HOLE
CLIP
FUSE
BLOCK
91. Remove the vehicle flange nut that secures the
vehicle bracket.
Q0N2309AG
CONTROL UNIT
BRACKET
8mm
NUT
VEHICLE
FLANGE
NUT
(reused)
CONTROL UNIT
BRACKET
8mm
NUT
VEHICLE
BRACKET
VEHICLE
FLANGE
NUT
VEHICLE
BRACKET
VEHICLE
PANEL
CONTROL
UNIT
BRACKET
Align.
92. Install the control unit bracket on top of the vehicle
bracket and align the control unit bracket with the
edge of the vehicle bracket. Reinstall the vehicle
flange nut. Install the 8 mm nut (supplied) on top of
the vehicle flange nut.
