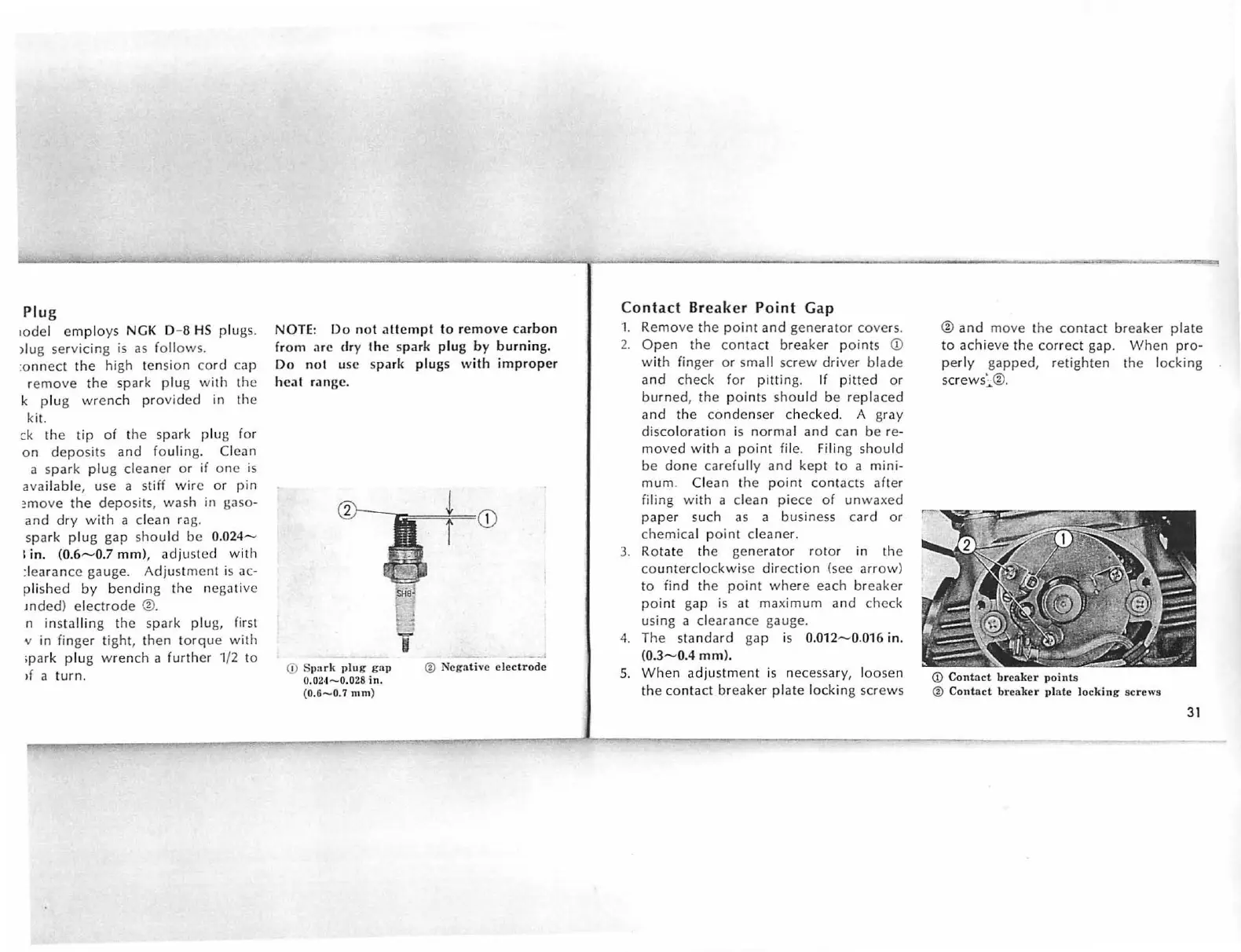

Honda 175 1971 User Manual

Plug
1odel emp loys NGK 0 - 8 HS plugs.
>lug servicing is as follows.
: onnect the high tension co rd cap
remove the spark plug w ith the
k
plug wrench pr ovide d in the
kit.
ck the tip of the spa rk plug for
on deposits and fouling. Clean
a spark
plu g cleaner or if one is
avai
labl e, use a stiff wir e or pin
~move the deposits, wash in gaso-
a
nd dry with a cl ea n rag.
spark
plug gap shou ld be 0.024-
1 in. (0.6-0.7 mm) , adjusted with
:l ea ran cc gauge. Adjus t ment is ac-
plished by bending the negative
mded) electrode ® ·
n in s tallin g the spark plug, first
v in finger tight, then torque with
;park plug wrench a furth er 1/2 to
if a turn.
NOTE: Do not attempt to remove carbon
from arc dry the spark plug by burning.
Do not use spark plugs with i mproper
heal range.
(i) S park plug gap
0.024-0 .028 in.
( 0.6-0.7 mm )
T
@ Nega ti ve electrode
Contact Breaker Point Gap
1. Remove the point and generator co vers.
2. Open the contact breaker points <D
with finger or small sc r ew driver blade
and check for p it t in g. If pitted or
burned, the points shoul d be replaced
and the co nd enser checked. A gray
discoloration is normal and can be re-
moved with a point fil e. Filing should
be done carefu ll y a nd kept to a mini-
mum. Clean the point contacts after
filing
with a clean piece of unwaxed
paper such as a business card or
chemical point cleaner.
3. Rotate the gene rat or rotor in the
counterclockwise direction (see arrow )
to find the po i nt where each breaker
point gap is at maximum and check
us
in g a clearance gauge.
4. The standard gap is 0.012-0.016 in.
(0.3-0.4 mm ).
5. When adju stme nt is necessary, loosen
the contact breaker plate lock ing screws
®and move the contact breaker plate
to achieve the co rrect gap. Whe n pro-
perly gapped, retighten the lo cking
sc r ews:._ @.
(i) Contact breaker points
@ Contact breaker plate locking screws
31
