Honda 2001 XR50R User Manual

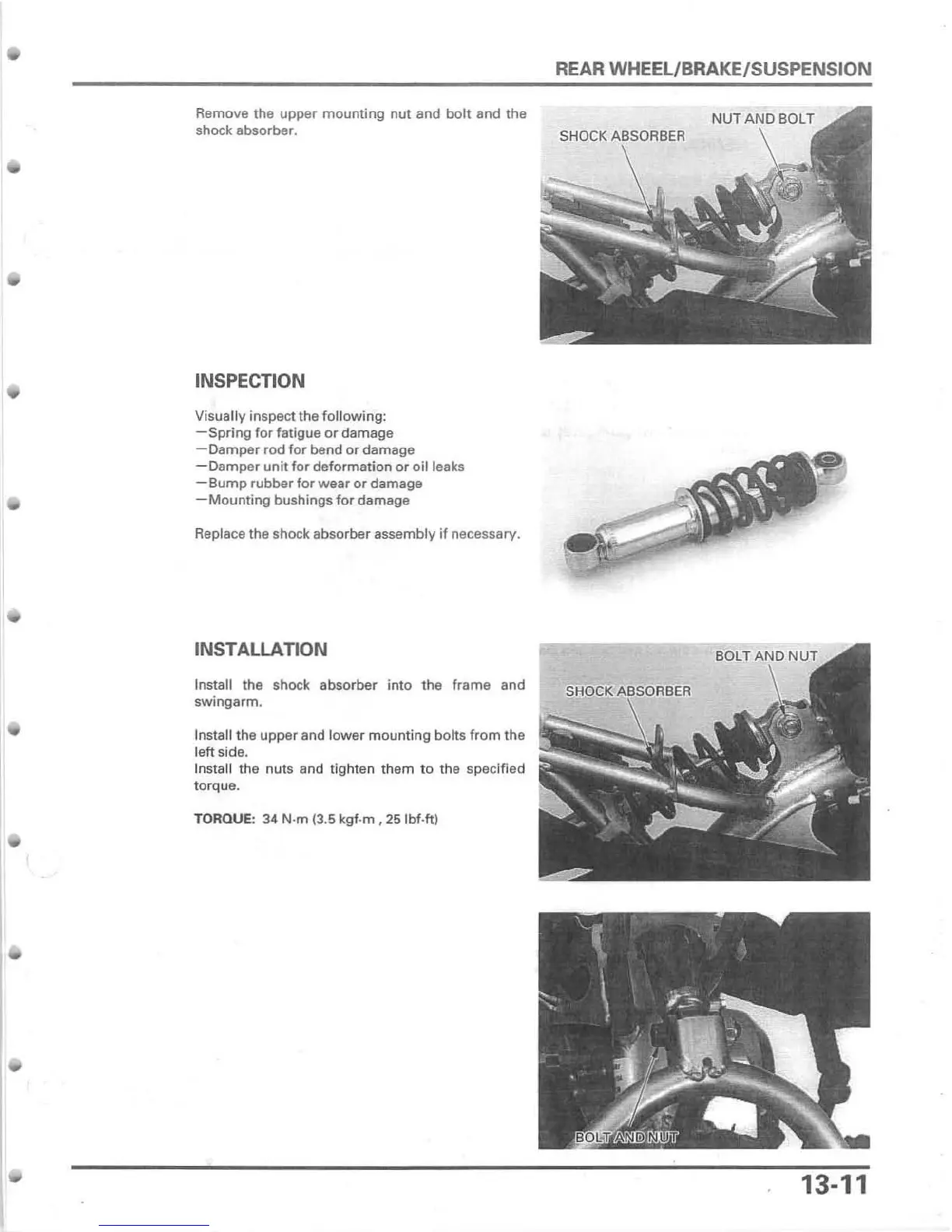

Remove the upper mounting nut and bolt and the
shock abso rb er.
INSPECTION
Visually inspect the following:
-Spring for fatigue or damage
-Damper rod for bend or damage
-Damper unit for deformation or oil leaks
-Bump rubb er for wear or damage
-Mounting bushings for damage
Replace the shock absorber assembly if necessary.
INSTALLATION
Install the shock absorber into the frame and
swingarm.
Install the upper and lower mounting bolts from the
left side.
Install the nuts and tighten them to the specified
torque.
TORQUE: 34 N·m (3.5 kgf.m , 25Ibf·ft)
REAR WHEEL/BRAKE/SUSPENSION
13-11

Honda 2001 XR50R Specifications

General

Engine Type	49cc air-cooled single-cylinder four-stroke
Bore and Stroke	39.0mm x 41.4mm
Compression Ratio	10.0:1
Ignition	CDI
Final Drive	Chain
Front Brake	Drum
Rear Brake	Drum
Front Tire	2.50-10
Rear Tire	2.50-10
Trail	1.7 inches
Seat Height	21.6 inches
Fuel Capacity	0.7 gallons
Transmission	Three-speed
Rear Suspension	Single shock; 2.8 inches travel
Front Suspension	Inverted telescopic fork; 3.5 inches travel
