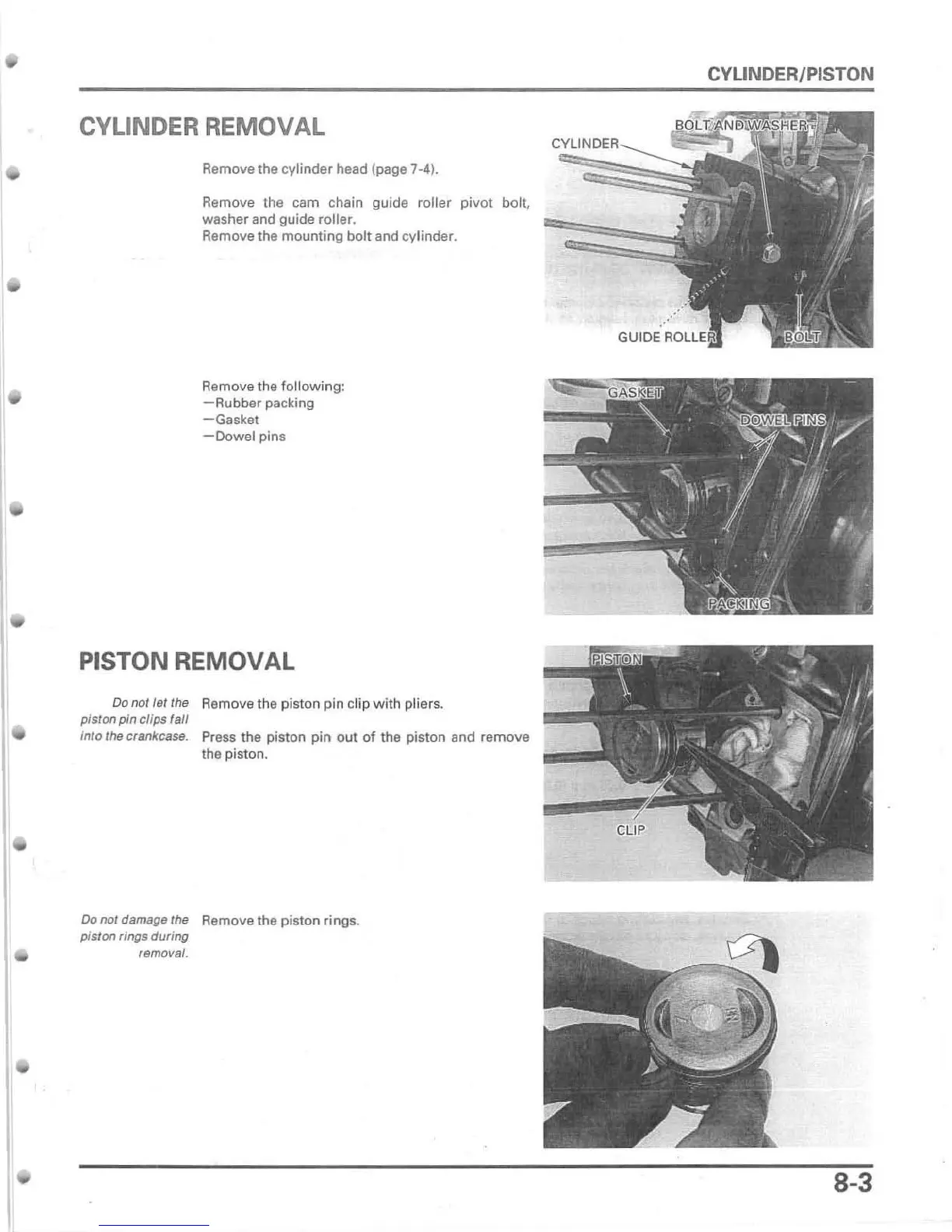

CYLINDER REMOVAL
Remove the cylinder head (page 7 -4).
Remove the cam chain guide roUer pivot boll,
washer and guide roller.
Remove the mounting bolt and cylinder.
Remove the following:
-Rubber packing
-Gasket
-Dowel pins
PISTON REMOVAL
Do nollet the Remove the piston pin clip with pliers.
piston pin clips fall
into the cranKcase. Press the piston pin out of the piston and remove
the piston.
Do not damage the Remove the piston rings.
pis/on rings dur ing
removal.
CYLINDER/PISTON
8-3

Honda 2001 XR50R Specifications

General

Engine Type	49cc air-cooled single-cylinder four-stroke
Bore and Stroke	39.0mm x 41.4mm
Compression Ratio	10.0:1
Ignition	CDI
Final Drive	Chain
Front Brake	Drum
Rear Brake	Drum
Front Tire	2.50-10
Rear Tire	2.50-10
Trail	1.7 inches
Seat Height	21.6 inches
Fuel Capacity	0.7 gallons
Transmission	Three-speed
Rear Suspension	Single shock; 2.8 inches travel
Front Suspension	Inverted telescopic fork; 3.5 inches travel
