Honda 2012 NC700D - Right Floor Skirt

Removing & Installing Body Components u Right Floor Skirt
62
Maintenance
Right Floor Skirt
The right floor skirt must be removed to
replace the clutch oil filter.
❙
Removal
1. Remove the front lower cover. 2 P. 61
2. Remove the floor mat.
3. Remove the bolts and clips A. 2 P. 63
4. Remove the prong from the grommet,
then remove the right floor skirt.
❙
Installation
Install the parts in the reverse order of
removal.

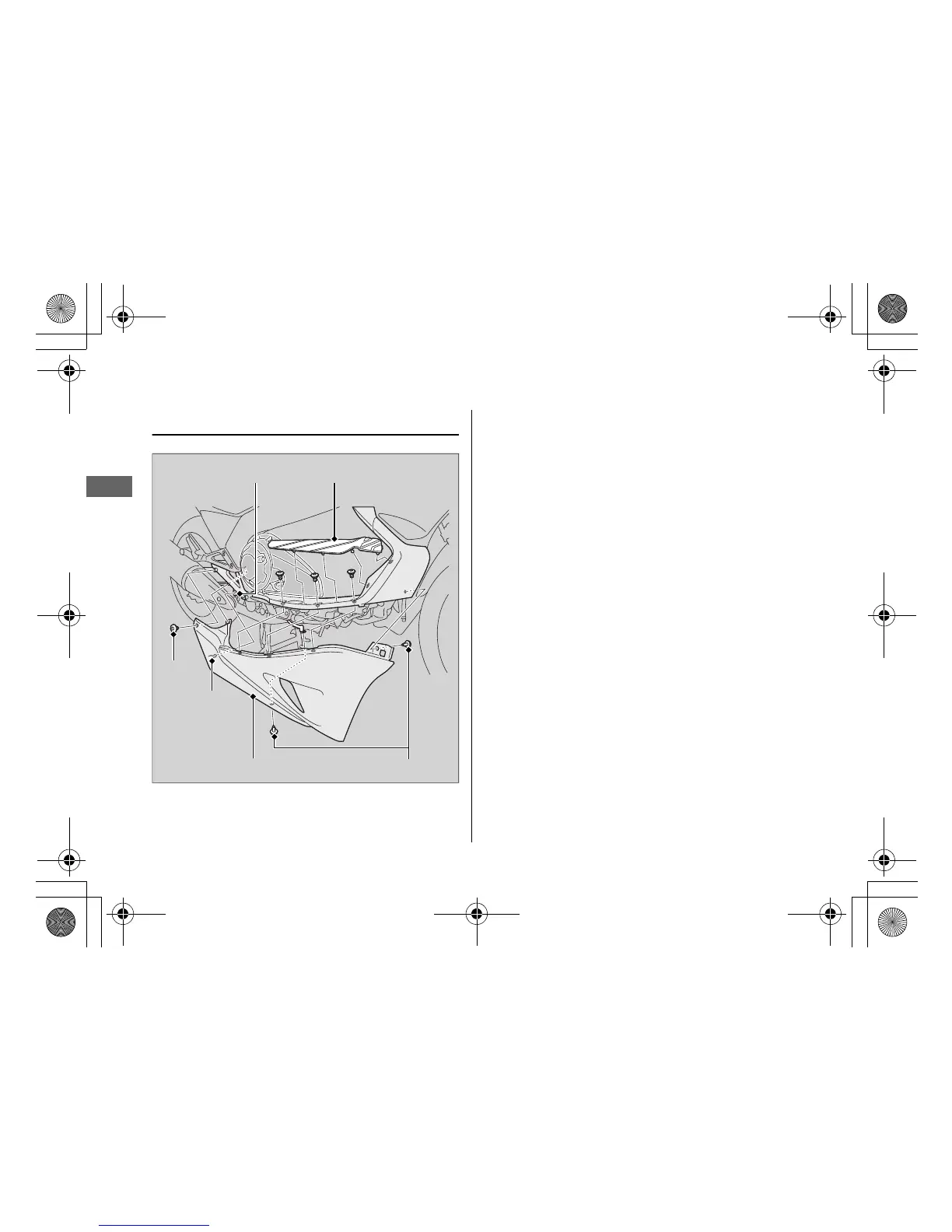

Right floor skirt
Bolt
Floor mat
Clips A
Prong
Grommet
