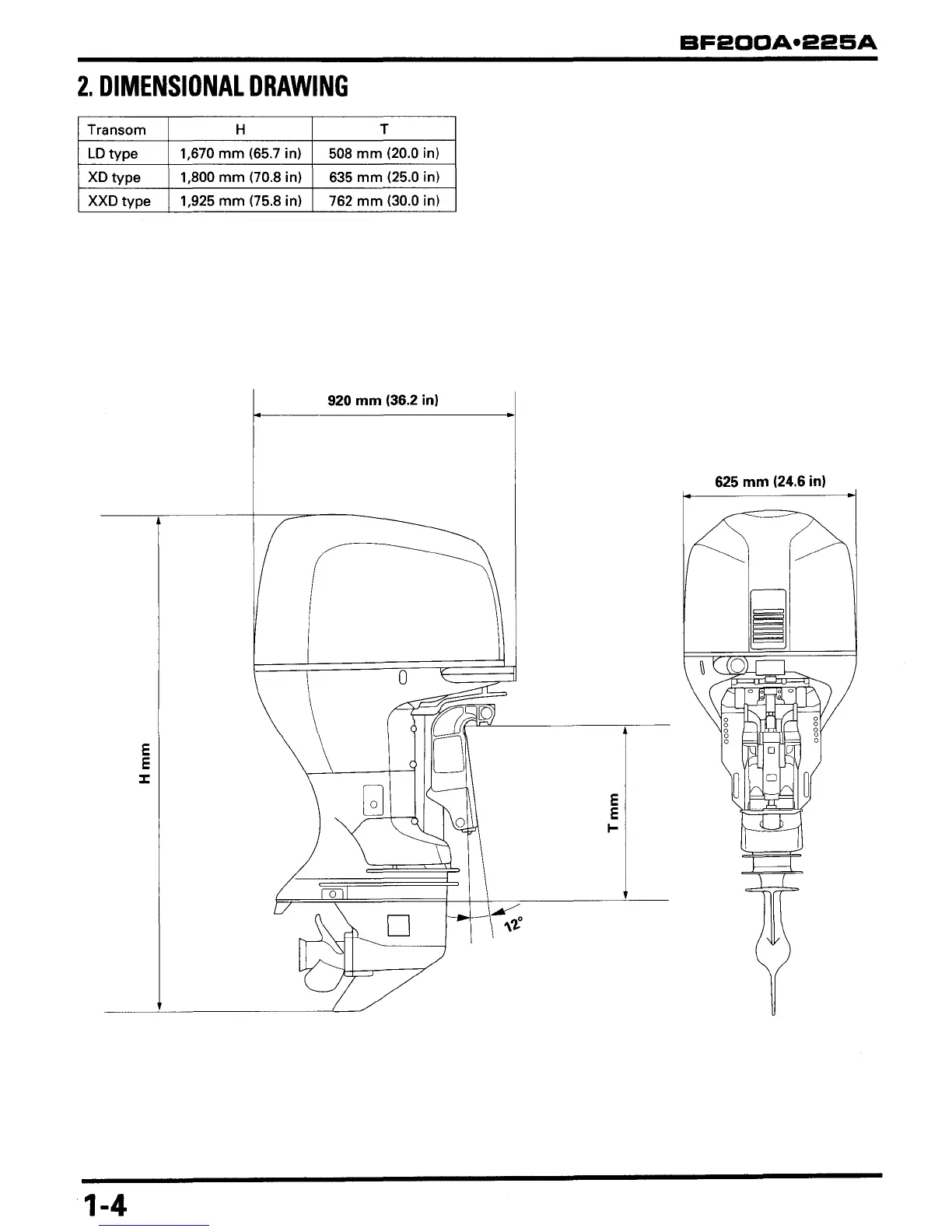

2. DIMENSIONAL DRAWING
Transom
LD type
XD type
XXD tvDe
H T
1,670 rnm (65.7 in)
1,800 mm (70.8 in)
1,925 mm (75.8 in)
508 rnm (20.0 in)
635 rnm (25.0 in)
762 rnm (30.0 in)
E
E
I
920 mm (36.2 in)
d
ll I
625 mm (24.6 in)
w
1-4
