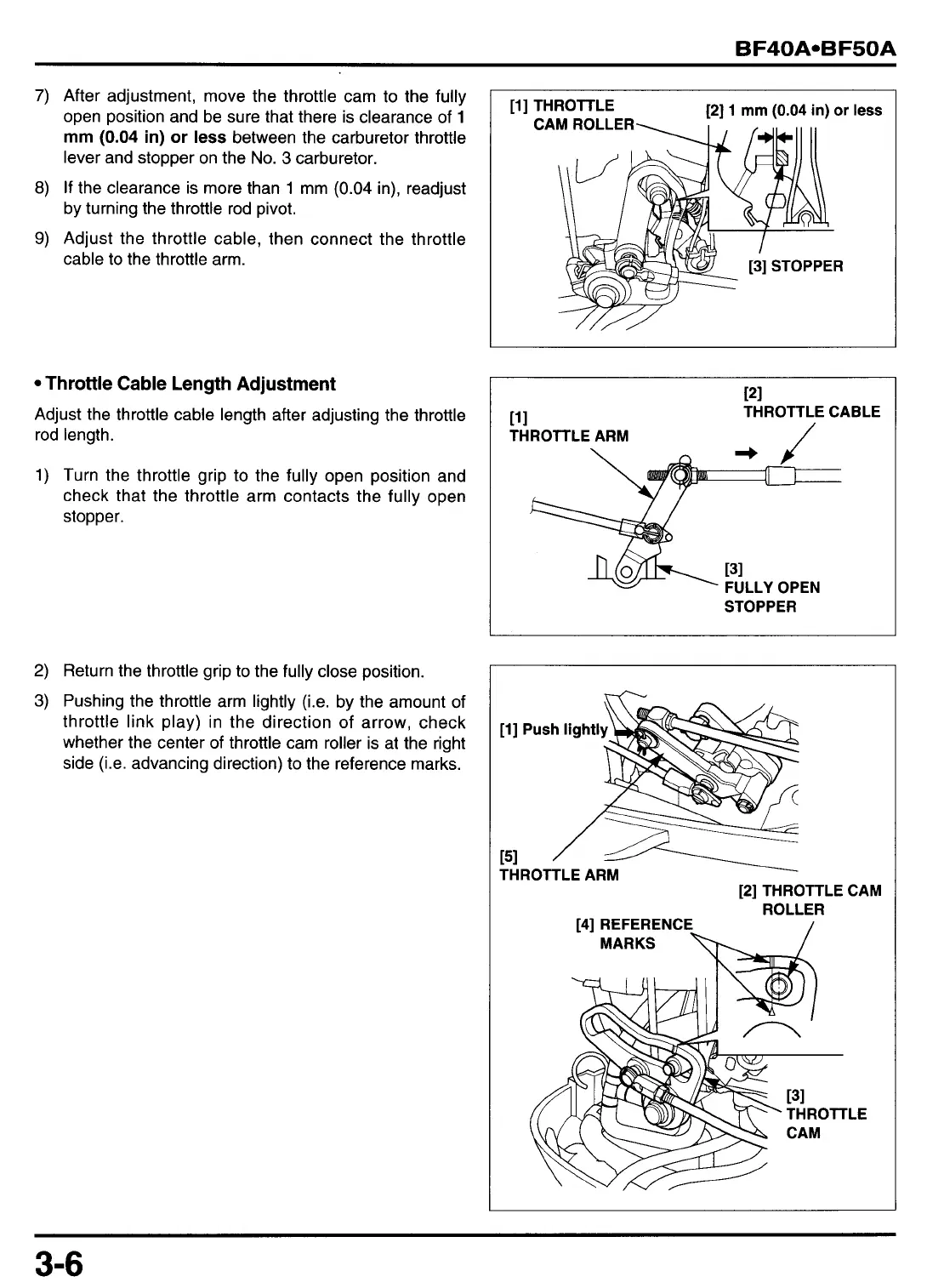

7)
After adjustment, move the throttle cam to the fully
open position and be sure that there is clearance of
1
mm
(0.04
in)
or
less
between the carburetor throttle
lever and stopper on the
No.
3
carburetor.
8)
If
the clearance is more than
1
mm (0.04 in), readjust
by turning the throttle rod pivot.
9)
Adjust the throttle cable, then connect the throttle
cable to the throttle arm.
Throttle Cable Length Adjustment
Adjust the throttle cable length after adjusting the throttle
rod length.
1)
Turn the throttle grip to the fully open position and
check that the throttle arm contacts the fully open
stopper.
2)
Return the throttle grip to the fully close position.
3)
Pushing the throttle arm lightly (i.e. by the amount of
throttle link play) in the direction of arrow, check
whether the center of throttle cam roller is at the right
side (i.e. advancing direction) to the reference marks.
THROTTLE
CAM ROLLER
[2] 1
mm
(0.04
in)
or
less
121
THROTTLE CABLE
/
PI
THROTTLE ARM
131
FULLY OPEN
STOPPER
151
/
THROTTLE ARM
[2] THROTTLE CAM
[4] REFERENCE
ROLLER
/
3-6
