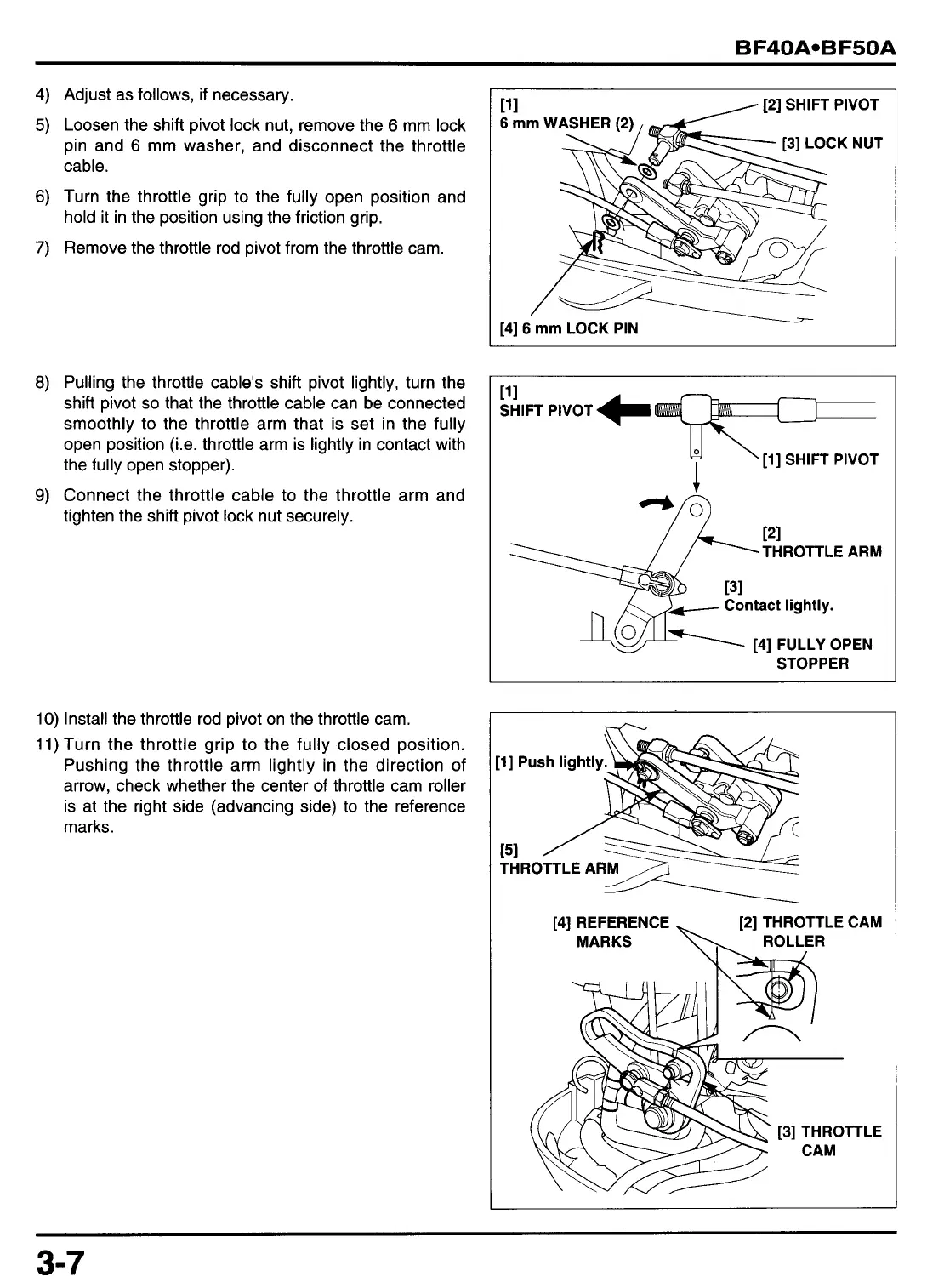

Adjust as follows,
if
necessary.
5)
Loosen the shift pivot lock nut, remove the
6
mm lock
pin and
6
mm washer, and disconnect the throttle
cable.
6)
Turn the throttle grip
to
the fully open position and
hold it in the position using the friction grip.
7)
Remove the throttle rod pivot from the throttle cam.
8)
Pulling the throttle cable's shift pivot lightly, turn the
shift pivot
so
that the throttle cable can be connected
smoothly to the throttle arm that is set in the fully
open position (i.e. throttle arm is lightly in contact with
the fully open stopper).
9) Connect the throttle cable to the throttle arm and
tighten the shift pivot lock nut securely.
10)
Install the throttle rod pivot on the throttle cam.
11)
Turn the throttle grip
to
the fully closed position.
Pushing the throttle arm lightly in the direction of
arrow, check whether the center of throttle cam roller
is at the right side (advancing side)
to
the reference
marks.
[2]
SHIFT PIVOT
[4]
6
mm
LOCK PIN
11
1
SHIFT PIVOT
1
'
'
[l]
SHIFT PIVOT
1
THROTTLE ARM
[4]
FULLY OPEN
I
STOPPER
[4]
REFERENCE
[2]
THROTTLE CAM
MARKS
\
ROLLER
