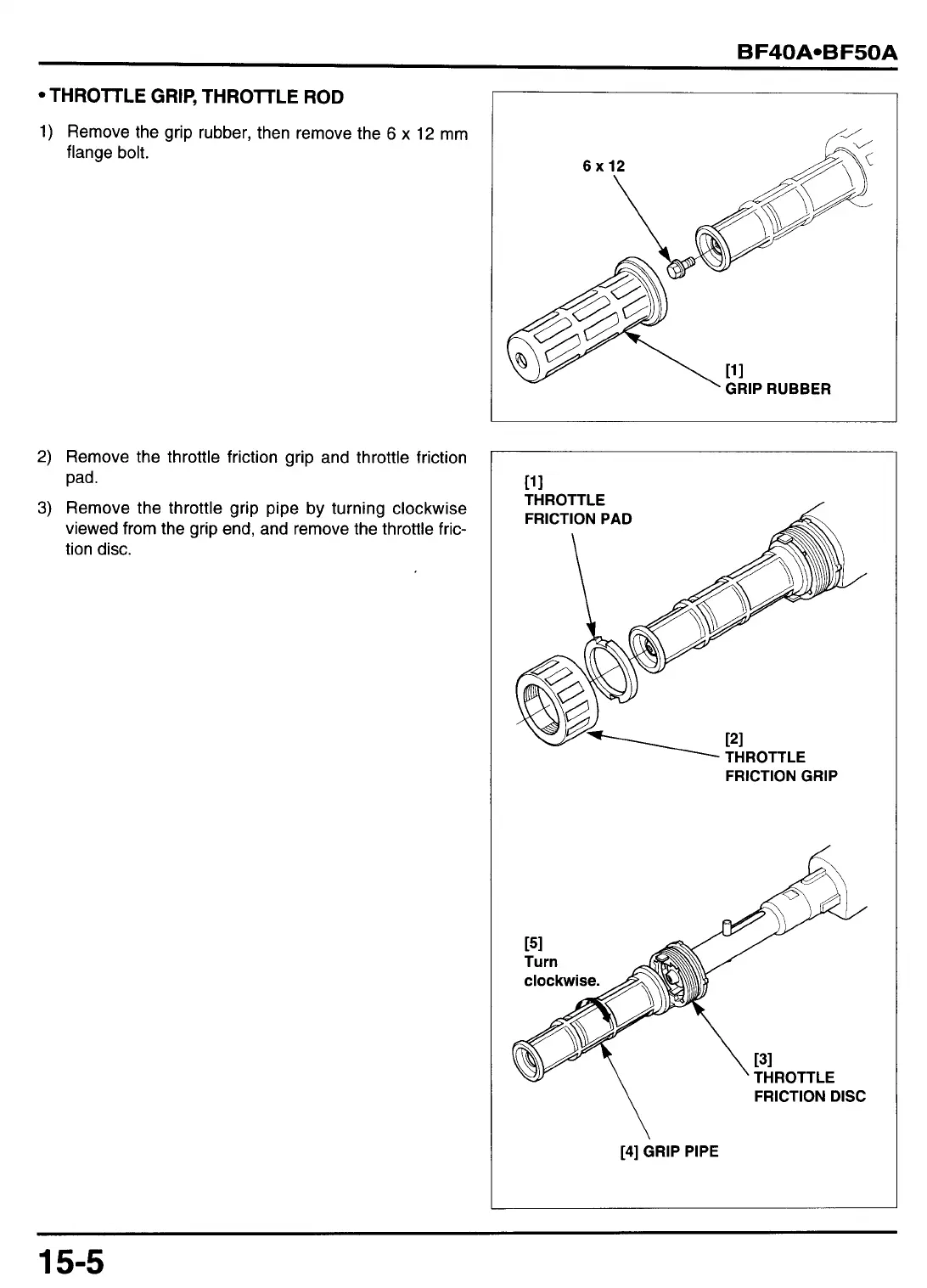

*THROTTLE GRIP, THROlTLE ROD
1) Remove the grip rubber, then remove the 6 x 12 mm
flange bolt.
2) Remove the throttle friction grip and throttle friction
pad.
3) Remove the throttle grip pipe by turning clockwise
viewed from the grip end, and remove the throttle fric-
tion disc.
/
FRICTION GRIP
FRICTION DISC
[4] GRIP PIPE
15-5
