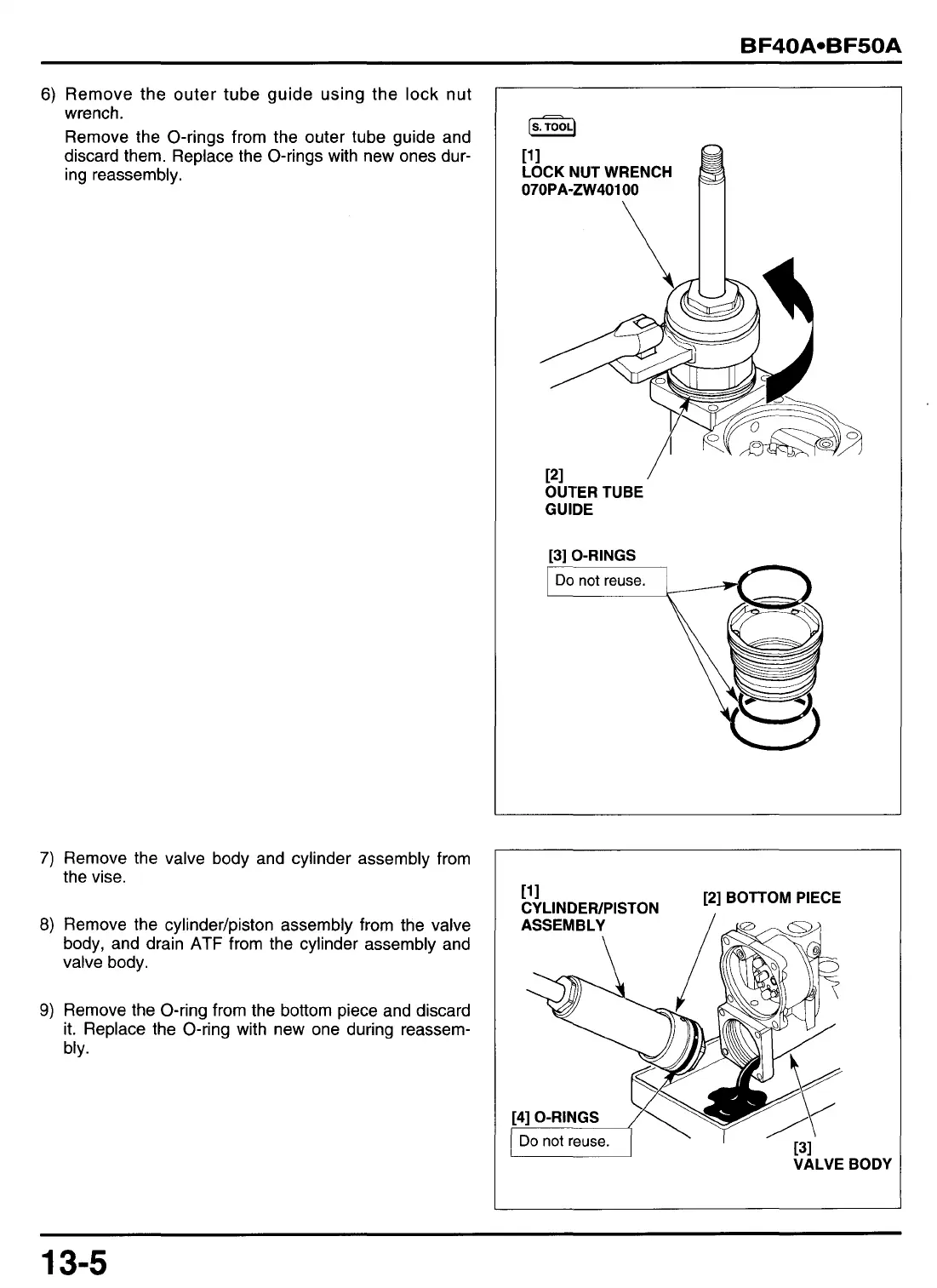

6) Remove the outer tube guide using the lock nut
I
wrench.
Remove the O-rings from the outer tube guide and
discard them. Replace the O-rings with new ones dur-
ing reassembly.
7)
Remove the valve body and cylinder assembly from
the vise.
8)
Remove the cylinder/piston assembly from the valve
body, and drain
ATF
from the cylinder assembly and
valve body.
9)
Remove the O-ring from the bottom piece and discard
it. Replace the O-ring with new one during reassem-
bly.
r11
LOCK NUT WRENCH
070PA-ZW40100
GUIDE
[3] O-RINGS
pzizr
r11 [2]
BOTTOM
PIECE
CY LINDEWPISTON
\I
/I
131
I
Do
not
reuse.
1
VALVE BODY
1315
