BF40A-BF50A
3)

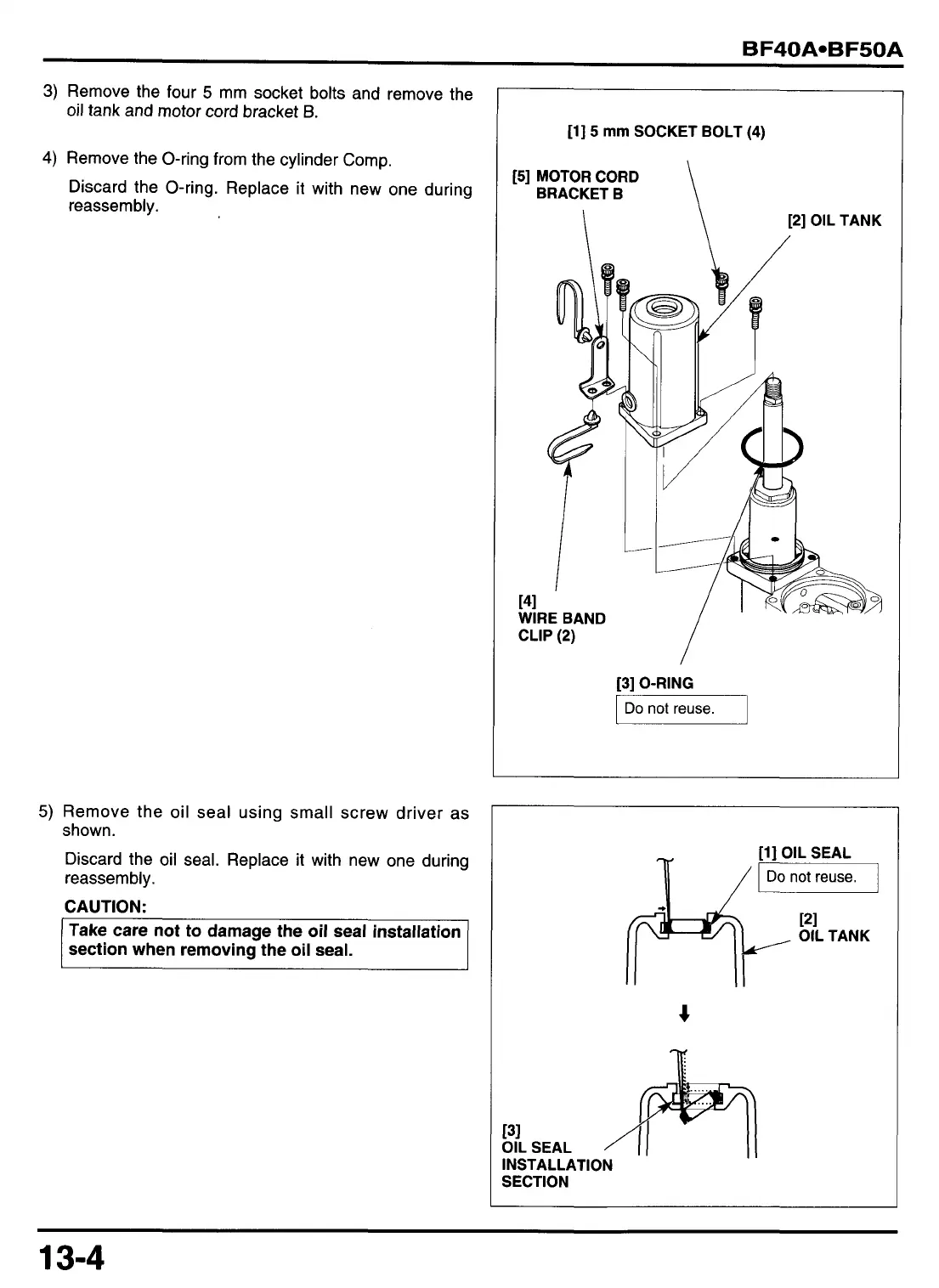

Remove the four
5
mm socket bolts and remove the
oil tank and motor cord bracket
B.
4)
Remove the O-ring from the cylinder Comp.
Discard the O-ring. Replace it with new one during
reassem
bl
y.
5)
Remove the oil seal using small screw driver as
shown.
Discard the oil seal. Replace it with new one during
reassem bl
y
.
CAUTION:
Take care not to damage the oil seal installation
section when removing the oil seal.
[l] 5
mm
SOCKET BOLT (4)
\
[5] MOTOR CORD
BRACKET B
[2] OIL TANK
\
[41
WIRE
BAND
I
CLIP (2)
[3] O-RING
Do
not
reuse.
1
1
[l] OIL SEAL
-1
/pzzr
PI
OIL SEAL
INSTALLATION
SECTION
13-4
