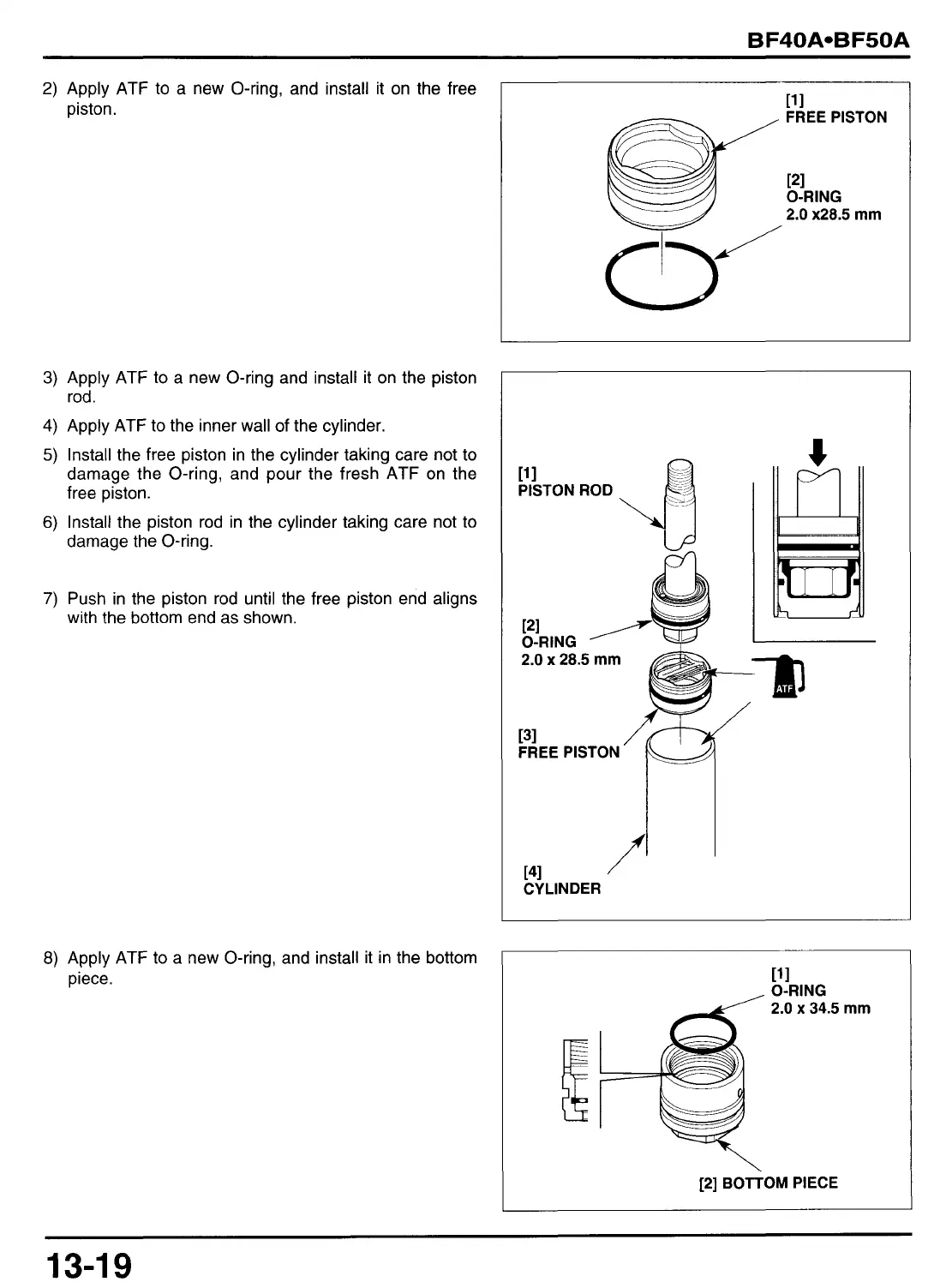

BF40A-BF50A
2)
Apply ATF
to
a new O-ring, and install it on the free
piston.
3)
Apply ATF
to
a new O-ring and install it on the piston
4)
Apply ATF
to
the inner wall
of
the cylinder.
5)
Install the free piston in the cylinder taking care not
to
damage the O-ring, and pour the fresh ATF on the
free piston.
6)
Install the piston rod in the cylinder taking care not
to
damage the O-ring.
rod.
7)
Push in the piston rod until the free piston end aligns
with the bottom end as shown.
8)
Apply ATF
to
a new O-ring, and install it in the
bottom
piece.
11
1
FREE PISTON
/
121
O-RING
2.0 x28.5
mm
/
a-
11
1
PISTON ROD
PI
O-RING
2.0 x 28.5
mm
141
/
CYLINDER
11
1
2.0
x
34.5
mm
~ O-RING
[2]
BOTTOM
PIECE
13-1
9
