OPERATION
Trim Meter
(equipped type or optional
equipment)
The trim meter indicates the trim
angle of the outboard motor. Refer to
the trim meter, and press the UP or
DN (down) portion of the power trim/
tilt switch to adjust the outboard
motor trim angle to achieve boat
performance and stability.
The illustration represents R1 type.
Perform the same procedure for the
other types.

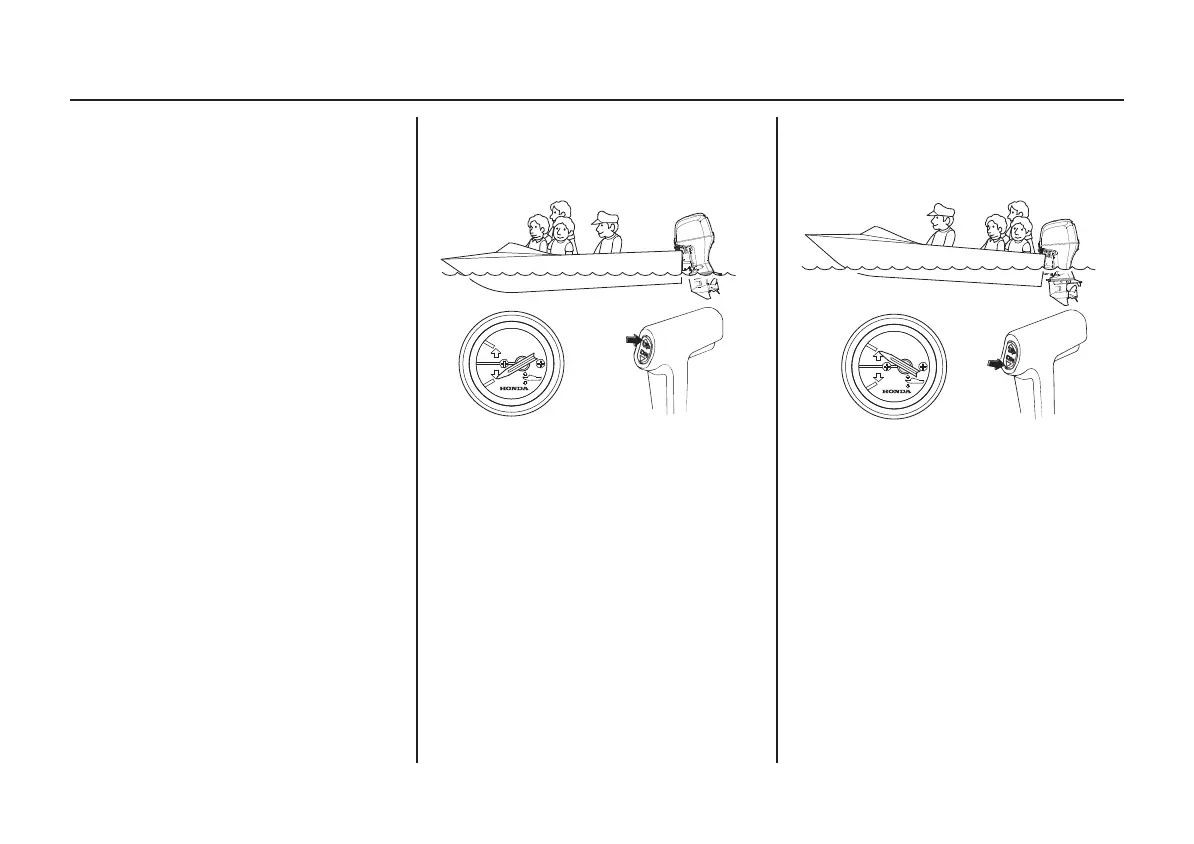

BOW TOO LOW DUE TO
1. LOAD IN THE FRONT
2. OUTBOARD MOTOR TRIMMED
TOO LOW
With the outboard motor trimmed
low the trim meter will read as
shown. To raise the bow increase the
outboard motor trim angle by
pressing the UP portion of the power
trim/tilt switch.
BOW TOO HIGH DUE TO
1. LOAD IN THE REAR
2. OUTBOARD MOTOR TRIMMED
TOO HIGH
With the outboard motor trimmed
high the trim meter will read as
shown. To lower the bow decrease
the outboard motor trim angle by
pressing the DN (down) portion of
the power trim/tilt switch.
