Honda CB1100CA 2017 User Manual

#
Main Fuse & FI Fuse
1. Remove the left side cover. 2 P. 62
2. Remove the starter magnetic switch
cover.
3. Using the fuse puller provided in the tool
kit (2 P. 57), pull the main fuse and FI fuse
out one by one and check for a blown
fuse. Always replace a blown fuse with a
spare fuse of the same rating.
u Spare fuses are provided in the fuse
box. 2 P. 110
4. Reinstall parts in the reverse order of
removal.
NOTICE
If a fuse fails repeatedly, you likely have an
electrical problem. Have your motorcycle
inspected by your dealer.
20170224170119_32MGC6510_eng_BOOK Page 114 Friday, February 24 2017 17:08:26 JST
Electrical Trouble u Blown Fuse
Troubleshooting
111

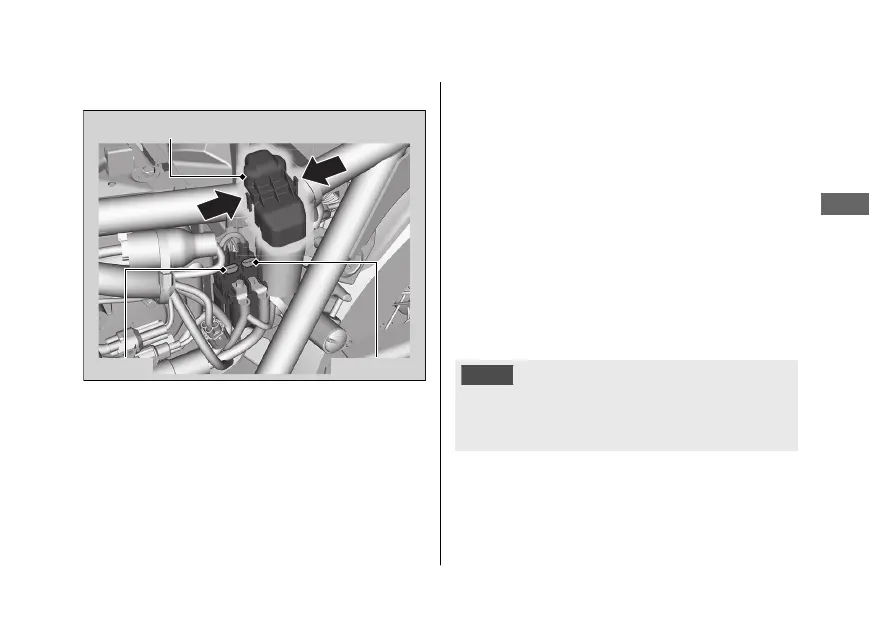

Starter magnetic switch
Main fuseFI fuse

Honda CB1100CA 2017 Specifications

General

Camshaft	DOHC
Displacement	1140 cc
Bore x Stroke	73.5 mm x 67.2 mm
Compression Ratio	9.5:1
Fuel System	PGM-FI electronic fuel injection
Transmission	6-speed
Final Drive	Chain
ABS	Yes
Seat Height	795 mm
Curb Weight	252 kg
Engine Type	Air-cooled 4-stroke DOHC inline-four
Front Suspension	Telescopic fork
Rear Suspension	Twin shock
Rear Brakes	Single 256 mm disc
Tires Front	110/80R18
Tires Rear	140/70-17
Fuel Capacity	14.6 litres
Valves	16
Power	66kW (90PS) @ 7, 500rpm
Front Brakes	Dual 296 mm floating discs, 4-piston calipers
