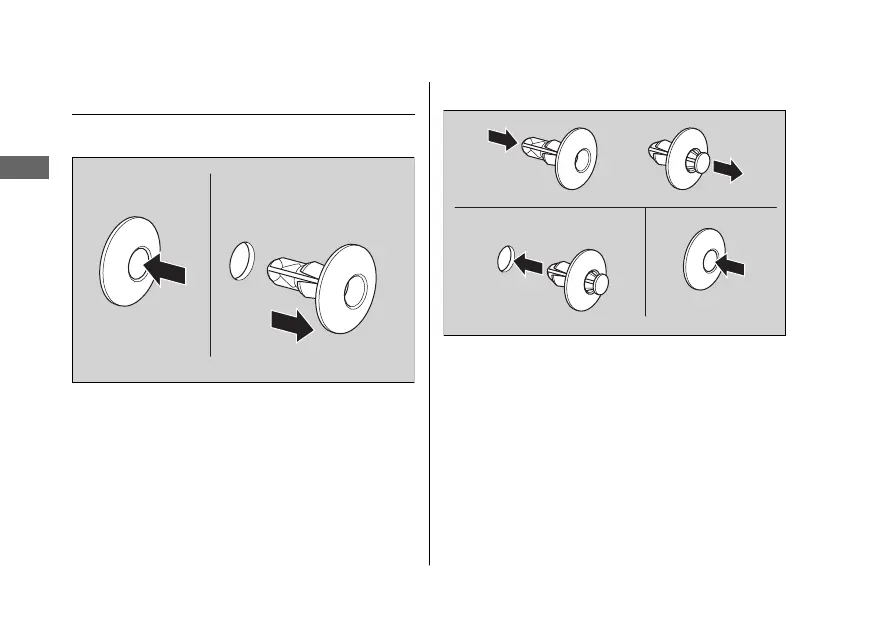

Clip
#
Removal
1.
Press down on the centre pin to release
the lock.
2.
Pull the clip out of the hole.
#
Installation
1.
Push the bottom of the centre pin.
2.
Insert the clip into the hole.
3.
Press down on the centre pin to lock the
clip.
20170224170119_32MGC6510_eng_BOOK Page 63 Friday, February 24 2017 17:08:26 JST
Removing & Installing Body Components u Clip
Maintenance
60
a b
a
b c
