Honda CB1100CA 2017 User Manual

Adjusting the Drive Chain Slack
Adjusting the chain requires special tools.
Have the drive chain slack adjusted by your
dealer.
When adjusting the drive chain slack, be
careful not to damage the wheel speed
sensor and pulser ring.
CB1100CA
1. Shift the transmission to Neutral. Stop the
engine.
2. Place your motorcycle on its centre stand
on a firm, level surface.
3. Loosen the rear axle nut.
4. Turn both adjusting bolts an equal
number of turns until the correct drive
chain slack is obtained. Turn the adjusting
bolts counterclockwise to tighten the
chain, or clockwise to provided more
slack. Adjust the chain slack at a point
midway between the drive sprocket and
the driven sprocket.
Check the drive chain slack. 2 P. 75
20170224170119_32MGC6510_eng_BOOK Page 79 Friday, February 24 2017 17:08:26 JST
Drive Chain u Adjusting the Drive Chain Slack
Maintenance
76

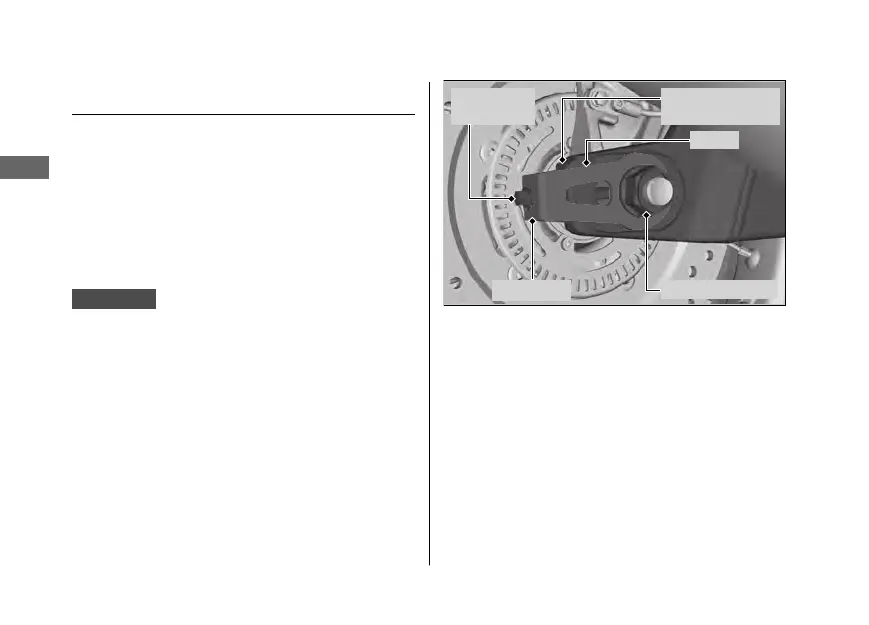

Adjusting
bolt
Adjuster
Scale
Rear axle nut
Rear end of
the swingarm

Honda CB1100CA 2017 Specifications

General

Camshaft	DOHC
Displacement	1140 cc
Bore x Stroke	73.5 mm x 67.2 mm
Compression Ratio	9.5:1
Fuel System	PGM-FI electronic fuel injection
Transmission	6-speed
Final Drive	Chain
ABS	Yes
Seat Height	795 mm
Curb Weight	252 kg
Engine Type	Air-cooled 4-stroke DOHC inline-four
Front Suspension	Telescopic fork
Rear Suspension	Twin shock
Rear Brakes	Single 256 mm disc
Tires Front	110/80R18
Tires Rear	140/70-17
Fuel Capacity	14.6 litres
Valves	16
Power	66kW (90PS) @ 7, 500rpm
Front Brakes	Dual 296 mm floating discs, 4-piston calipers
