Honda CB250N User Manual

Lights/Meters/S
witches

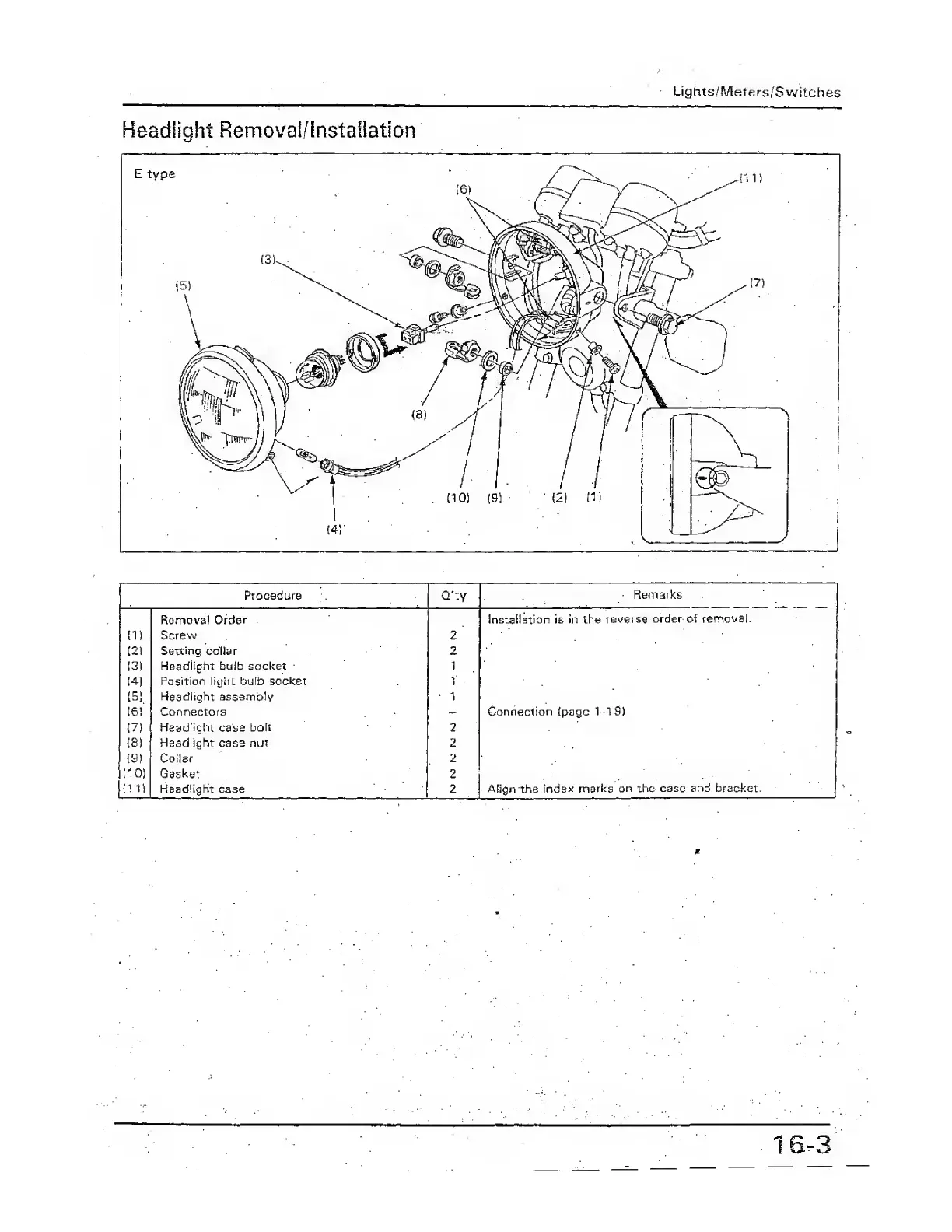

Headlight
Removal/Installation
Procedure
Q'ty
Remarks
Removal
Order
Installation is in the
reverse
order of
removal-
(1)
Screw 2
(2)
Setting
collar
•
2
(31 Headiight
bulb socket 1
(4)
Position liynL bulb socket 1
(5!
Headlight assembly 1
(6!
Connectors
Connection
(page
1-191
(7)
Headlight case bolt 2
18)
Headlight case nut
2
(9)
Collar
2
110) Gasket
2
(HI Headlight case 2 Align the
index marks
on the case and bracket.

Honda CB250N Specifications

General

Compression Ratio	9.2:1
Ignition	CDI
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Suspension	Dual shocks
Front Brake	Single disc
Rear Brake	Drum
Seat Height	780 mm
Cooling System	Air-cooled
Power	20 kW (27 hp) @ 9500 rpm
