Clutch/Gearshift Linkage

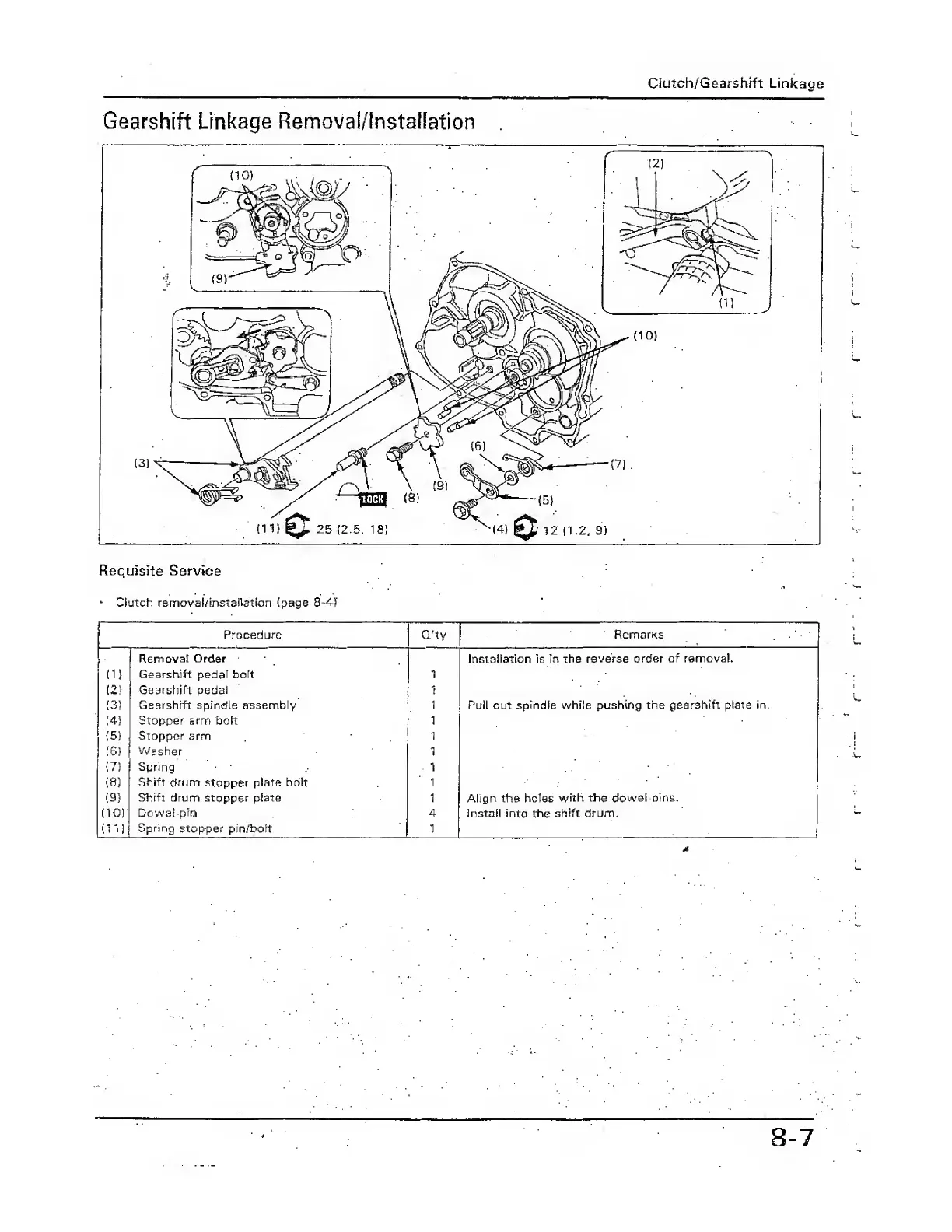

Gearshift Linkage
Removal/Installation
Requisite Service
Clutch
removal/installation
(page
8-4)
Procedure Q'ty
Remarks
Removal
Order
Installation
is in the
reverse
order of removal.
(1)
Gearshift pedal bolt
(2)
Gearshift pedal
(3)
Gearshift spindle assembly
Pull out
spindle
while
pushing
the gearshift plate in.
(4)
Stopper arm
bolt
(5)
Stopper arm
(6)
Washer
(7)
Spring
(81
Shift
drum stopper
plate
bolt
(9)
Shift drum stopper plate
Align the
holes
with the dowel pins.
(10)
Dowel pin
4 Install
into the
shift drum.
(11)
Spring
stopper pin/bolt 1
8-7

Honda CB250N Specifications

General

Compression Ratio	9.2:1
Ignition	CDI
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Suspension	Dual shocks
Front Brake	Single disc
Rear Brake	Drum
Seat Height	780 mm
Cooling System	Air-cooled
Power	20 kW (27 hp) @ 9500 rpm
