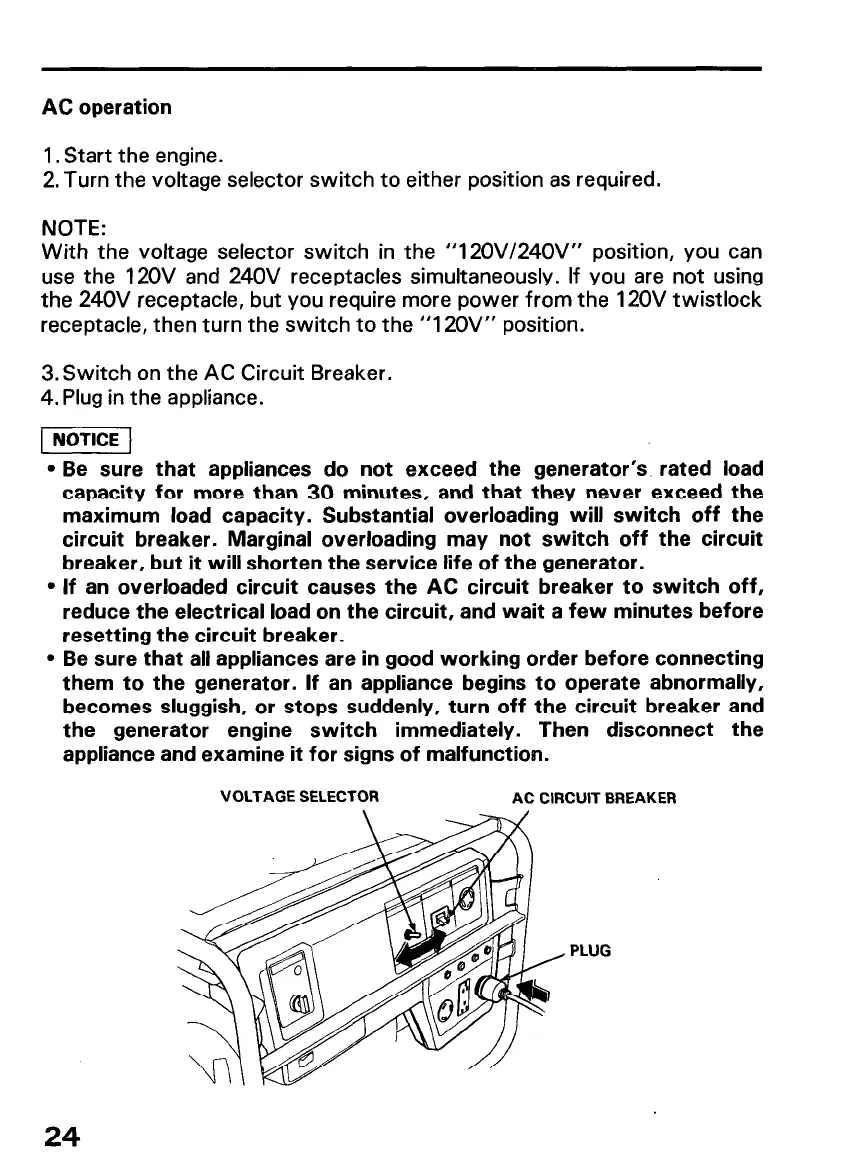

AC operation
1. Start the engine.
2. Turn the voltage selector switch to either position as required.
NOTE:
With the voltage selector switch in the “12OV/24OV” position, you can
use the 120V and 240V receptacles simultaneously. If you are not using
the 240V receptacle, but you require more power from the 12OV twistlock
receptacle, then turn the switch to the “12OV” position.
3. Switch on the AC Circuit Breaker.
4. Plug in the appliance.
l Be sure that appliances do not exceed the generator’s rated load
capacity for more than 30 minutes, and that they never exceed the
maximum load capacity. Substantial overloading will switch off the
circuit breaker. Marginal overloading may not switch off the circuit
breaker, but it will shorten the service life of the generator.
l If an overloaded circuit causes the AC circuit breaker to switch off,
reduce the electrical load on the circuit, and wait a few minutes before
resetting the circuit breaker.
l Be sure that all appliances are in good working order before connecting
them to the generator. If an appliance begins to operate abnormally,
becomes sluggish, or stops suddenly, turn off the circuit breaker and
the generator engine switch immediately. Then disconnect the
appliance and examine it for signs of malfunction.
VOLTAGE SELECTOR
AC CIRCUIT BREAKER
PLUG
24
