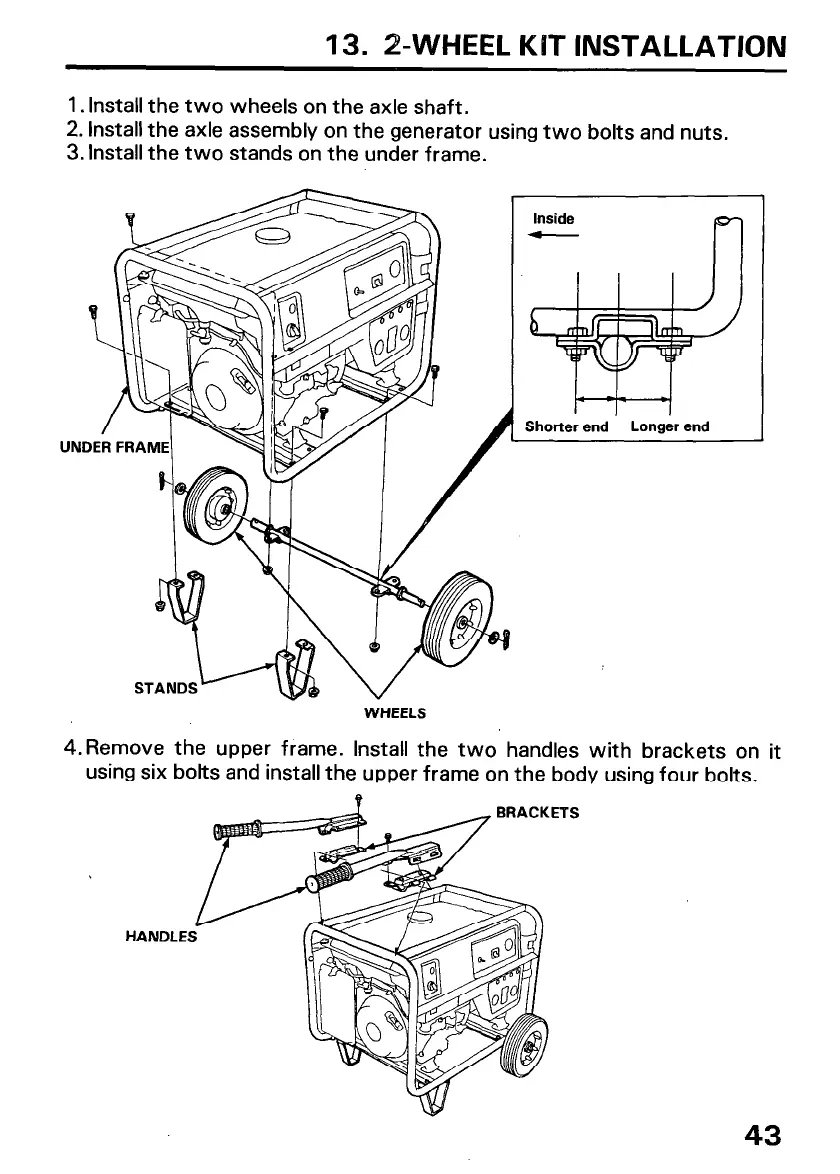

13. 2-WHEEL KIT INSTALLATION
1. Install the two wheels on the axle shaft.
2. Install the axle assembly on the generator using two bolts and nuts.
3. Install the two stands on the under frame.
WHEELS
4.Remove the upper frame. Install the two handles with brackets on it
using six bolts and install the upper frame on the body using four bolts.
HANDLE
43
