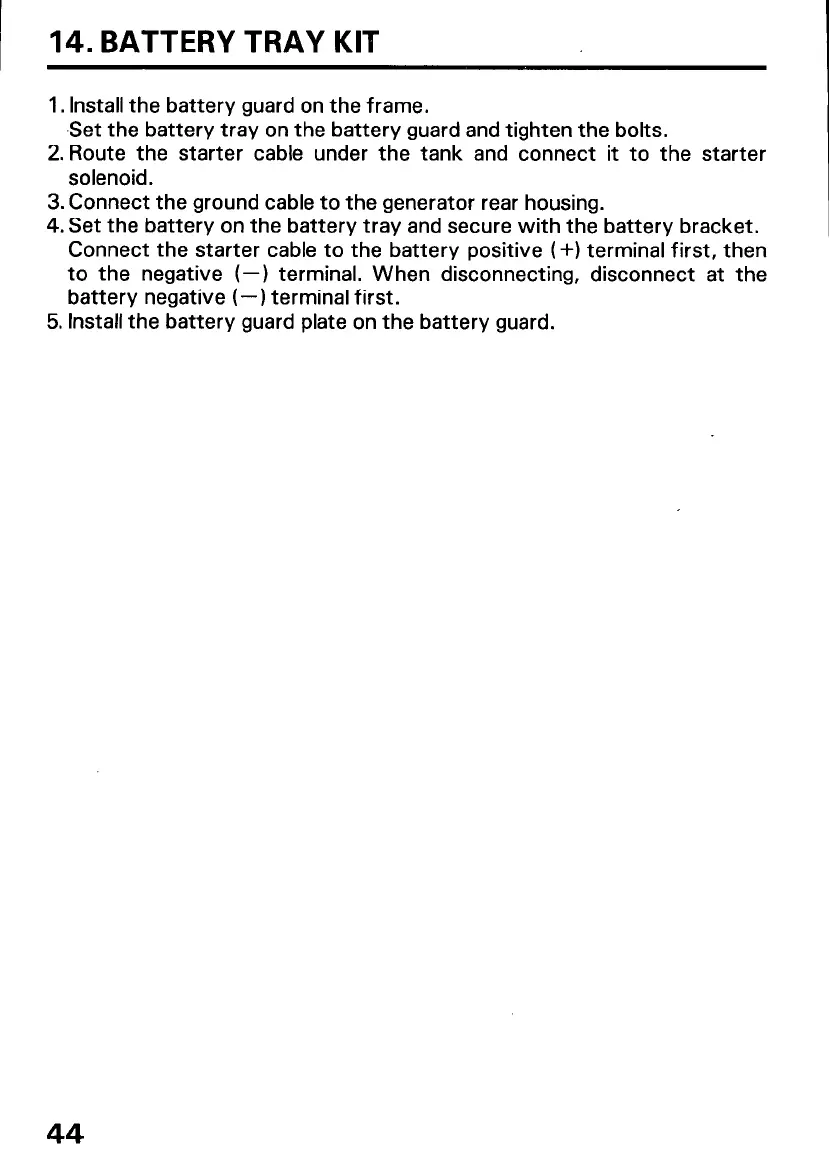

14. BATTERY TRAY KIT
1. Install the battery guard on the frame.
Set the battery tray on the battery guard and tighten the bolts.
2. Route the starter cable under the tank and connect it to the starter
solenoid.
3. Connect the ground cable to the generator rear housing.
4. Set the battery on the battery tray and secure with the battery bracket.
Connect the starter cable to the battery positive (+I terminal first, then
to the negative (-1 terminal. When disconnecting, disconnect at the
battery negative (-1 terminal first.
5. Install the battery guard plate on the battery guard.
