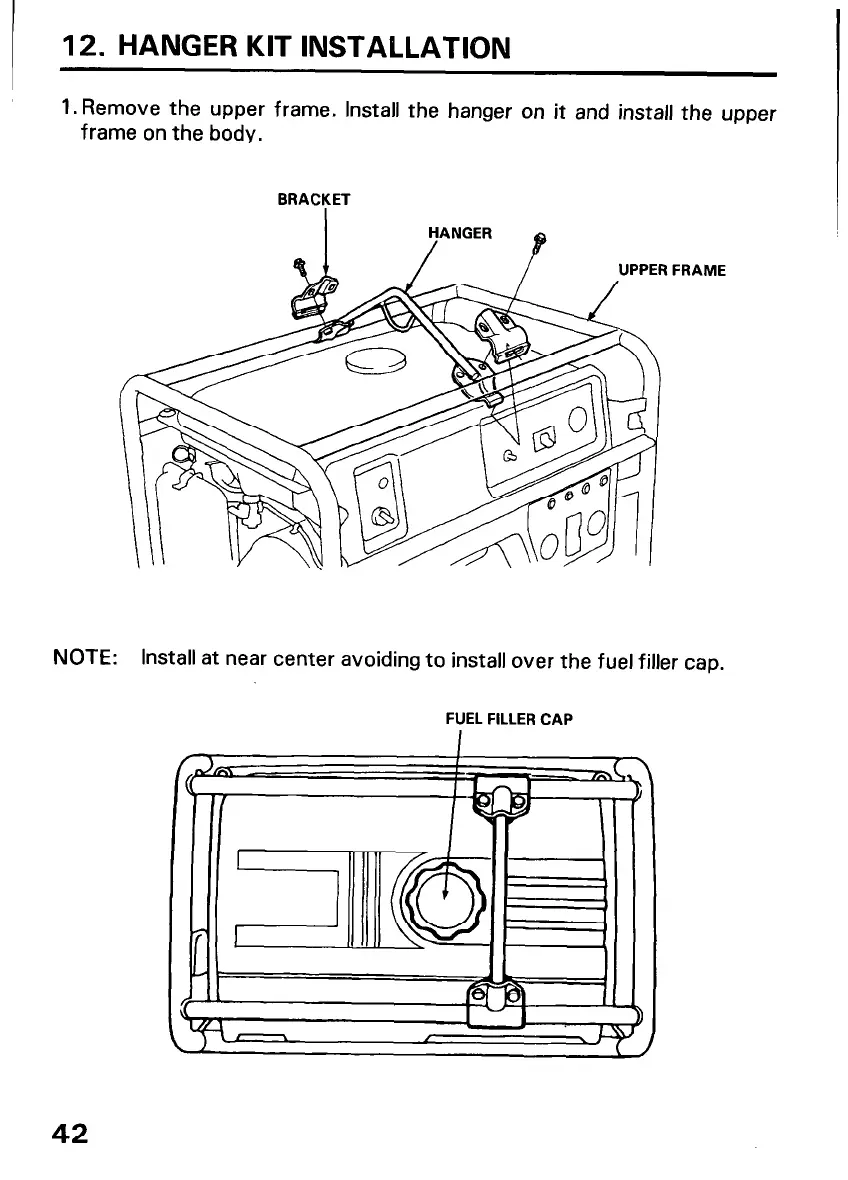

12. HANGER KIT INSTALLATION
1. Remove the upper frame. Install the hanger on it and install the upper
frame on the body.
BRACKET
HANGER
/
%
FRAME
NOTE: Install at near center avoiding to install over the fuel filler cap.
FUEL FILLER CAP
I
I
42
