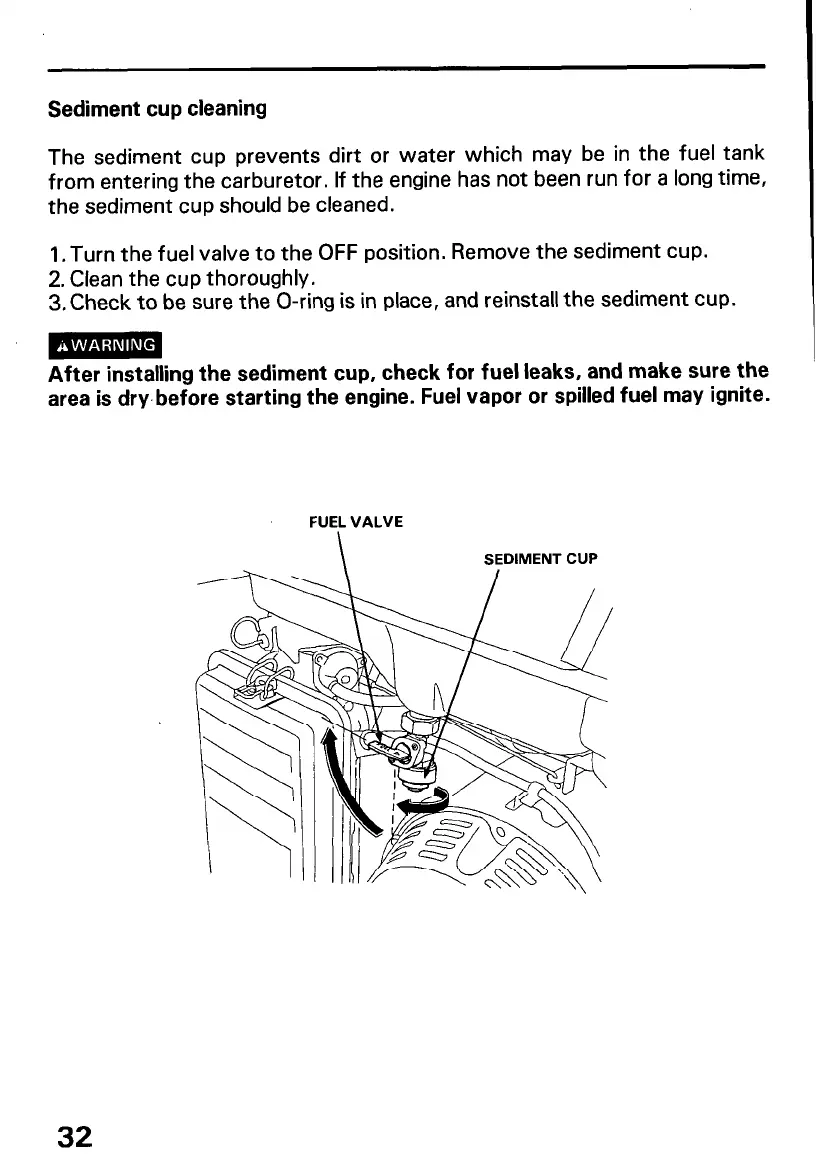

Sediment cup cleaning
The sediment cup prevents dirt or water which may be in the fuel tank
from entering the carburetor. If the engine has not been run for a long time,
the sediment cup should be cleaned.
1 .Turn the fuel valve to the OFF position. Remove the sediment cup.
2. Clean the cup thoroughly.
3. Check to be sure the O-ring is in place, and reinstall the sediment cup.
After installing the sediment cup, check for fuel leaks, and make sure the
area is dry.before starting the engine. Fuel vapor or spilled fuel may ignite.
FUEL VALVE
\ SEDIMENT CUP
32
