Honda EB6500 - Spark Arrester Maintenance

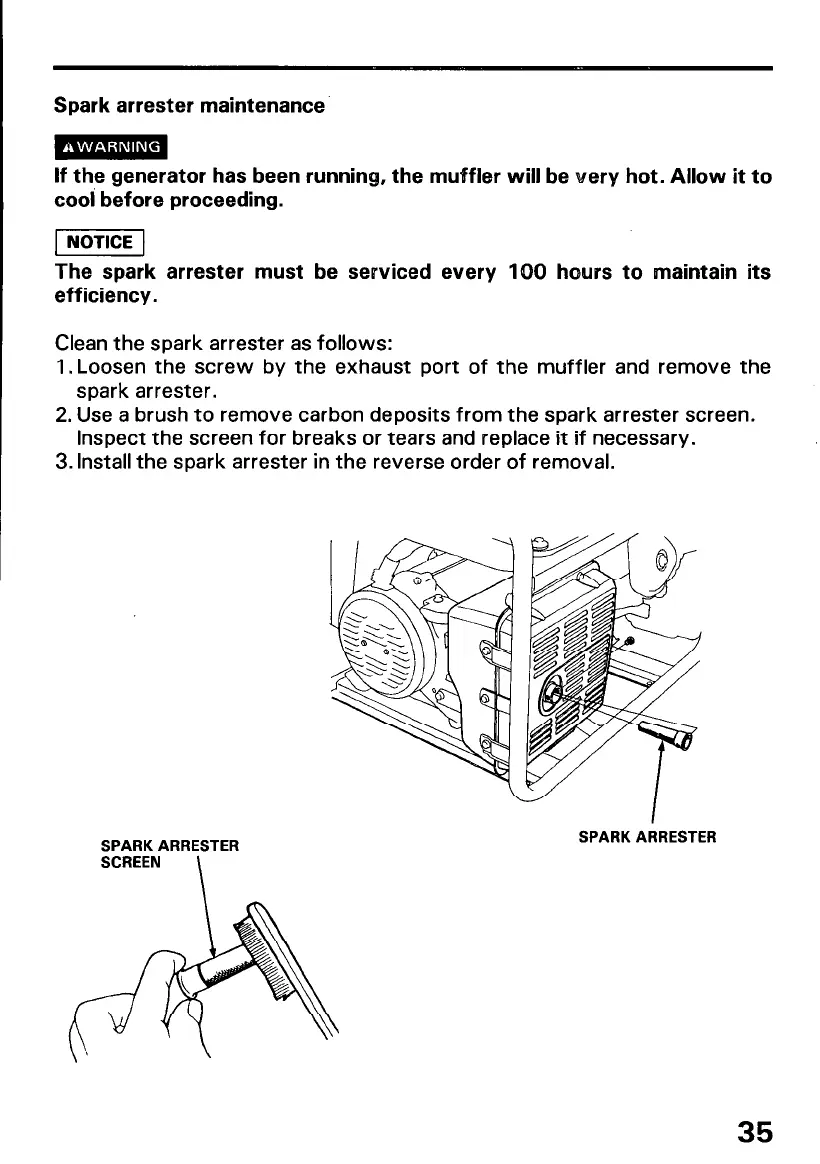

Spark arrester maintenance
If the generator has been running, the muffler will be very hot. Allow it to
cool before proceeding.
Thespark arrester must be serviced every IQ0 hours to maintain its
efficiency.
Clean the spark arrester as follows:
1. Loosen the screw by the exhaust port of the muffler and remove the
spark arrester.
2. Use a brush to remove carbon deposits from the spark arrester screen.
Inspect the screen for breaks or tears and replace it if necessary.
3. Install the spark arrester in the reverse order of removal.
SPARK ARRESTER
SCREEN \
SPARK ARRESTER
35
