Honda ECMT7000 - Preparation; Transport Kit Assembly

9
PREPARATION
ASSEMBLY OF TRANSPORT KIT

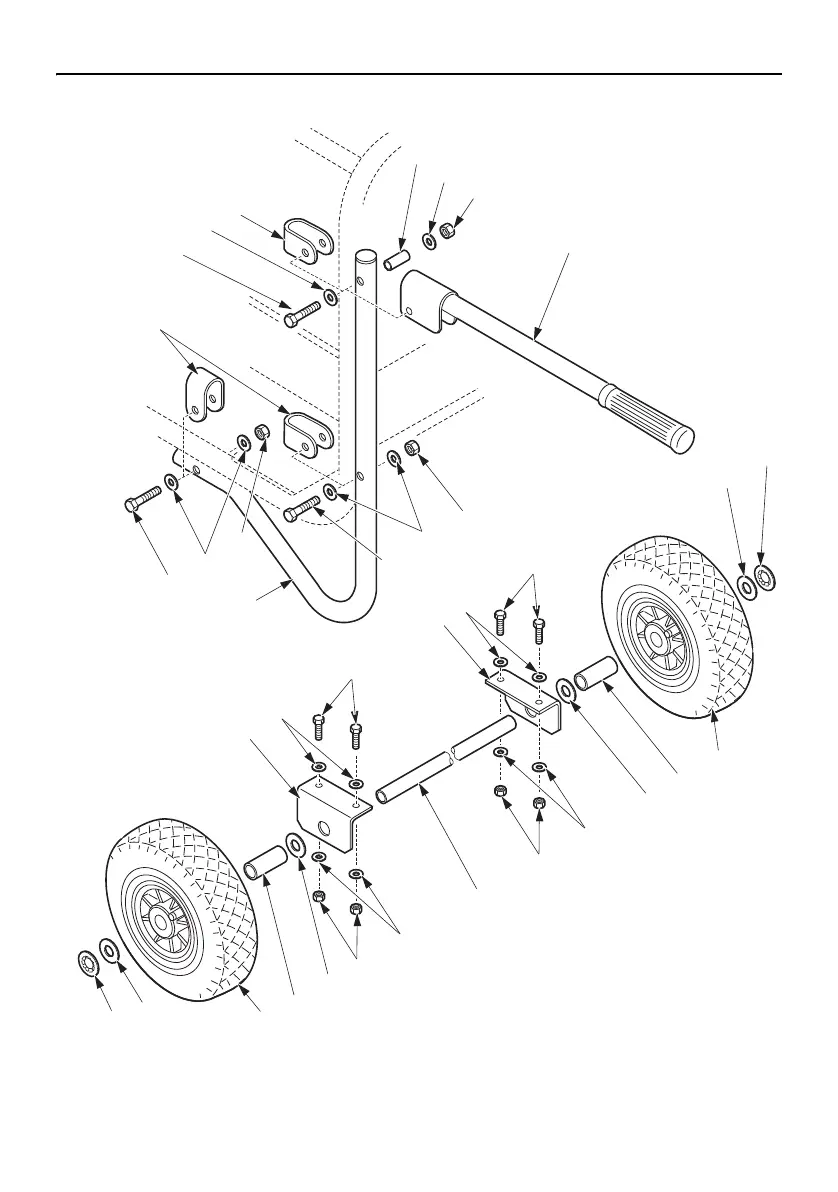

The ECMT7000 generating set is supplied with a transport kit whose handles and wheels can
be removed. This kit must be assembled according to the numerical order of the parts listed
above. Full tightening of the screws [2] must only be done after the spacers [8] have been
assembled.
