Honda EU6500is User Manual

85
ASSEMBLY
Engine Oil
WITHOUT OIL
Fuel

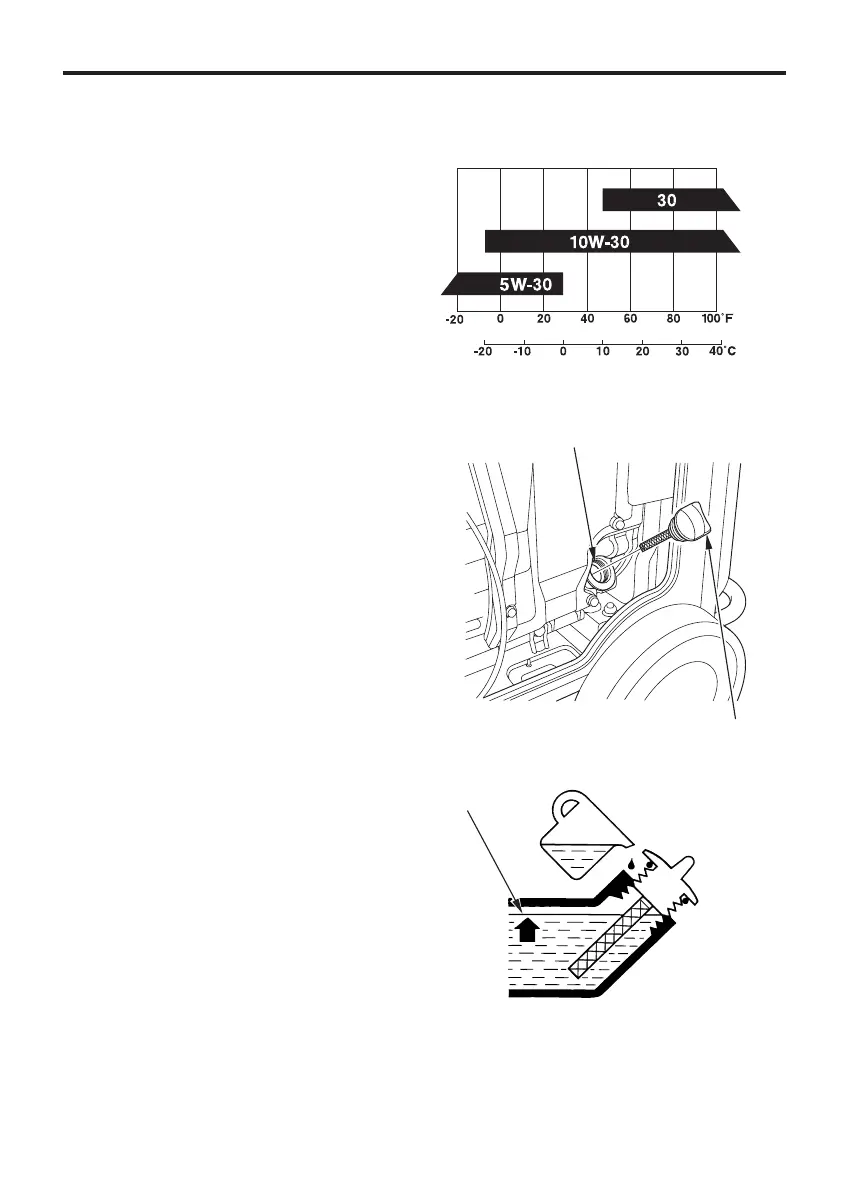

SAE Viscosity Grades
AMBIENT TEMPERATURE
OIL FILLER HOLE
UPPER LIMIT
OIL FILLER CAP/
DIPSTICK
The generator is shipped
in the engine.
Refer to page .
Place the generator on a level
surface. Open the right
maintenance cover by turning
its latch counterclockwise.
Add enough of the
recommended oil to bring the
oil level to the top of the oil
filler neck.
Use a 4-stroke motor oil that
meets the requirements for
API service classification SJ
or later.
SAE 10W-30 is recommended
for general, all-temperature
use. Other viscosities in the
chart may be used when the
temperature in your area is
within the indicated range.
Do not overfill engine oil. If
the engine is overfilled, the
excess oil may get
transferred to the air cleaner
housing and air filter.
Close the right maintenance
cover by turning its latch
clockwise.
60
06/09/12 12:31:07 31Z25600_086

Honda EU6500is Specifications

General

Model	EU6500is
Category	Portable Generator
Rated Voltage	120/240V
Rated Amperage	45.8/22.9A
Inverter	Yes
Electric Start	Yes
Displacement	389cc
Starting System	Electric and Recoil
Fuel Type	Gasoline
Rated AC Output	5500W
Engine	Honda GX390
Fuel Tank Capacity	4.5 gal
Run Time per Tankful at 1/4 Load	14.0 hrs
DC Output	12V, 8A
Noise Level	60 dB(A)
Engine Type	4-stroke, OHV
Outlets	Two 120V 20A GFCI Duplex, One 120/240V 30A Locking Plug
