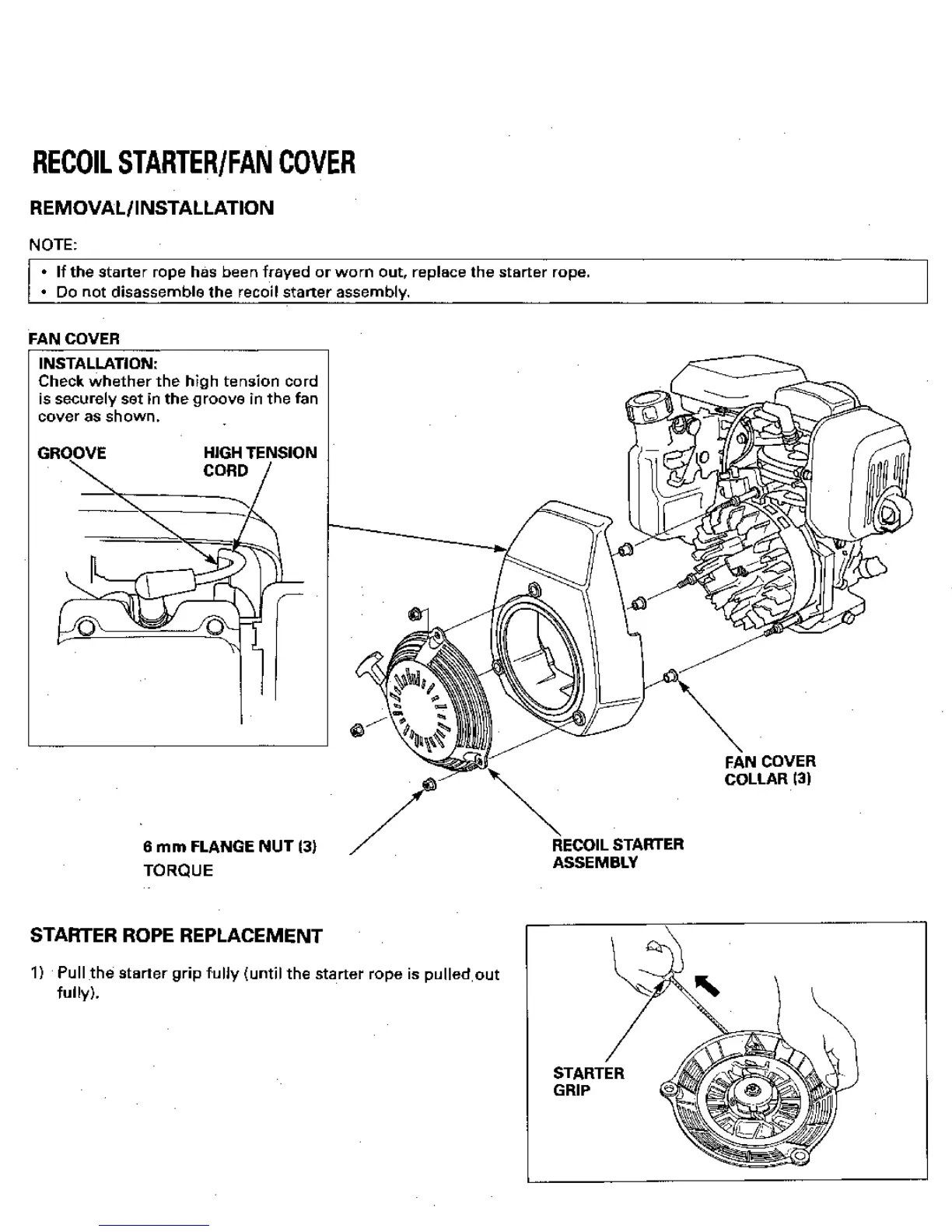

RECOIL STARTER/FAN
COVER
REMOVAL/INSTALLATION
NOTE:
If
the starter rope has been frayed or worn out, replace the starter rope.
Do not disassemble the recoil starter assembly.
FAN COVER
INSTALLATION:
Check whether the high tension cord
is
securely set
in
the groove in the fan
cover as shown.
GROOVE
HIGH
TENSION
I
6
mm
FLANGE NUT
(3)
TORQUE
/
STARTER ROPE REPLACEMENT
1)
Pull the starter grip fully (until the starter rope
is
pulled out
fully).
\
RECOIL STARTER
ASSEMBLY
gc160_gcaha_3599750_3721672
