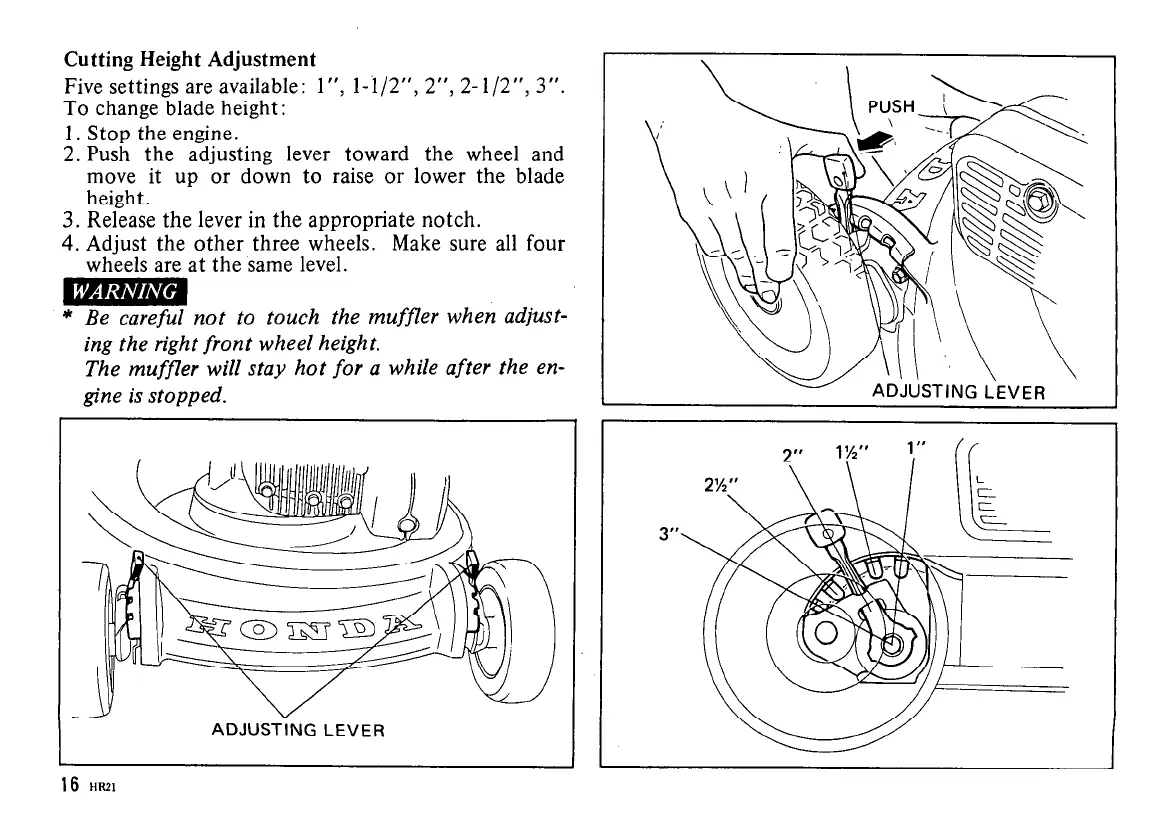

Cutting Height Adjustment
Five settings are available: l”, l-i/2”, 2”, 2-l/2”, 3“.
To change blade height:
1. Stop the engine.
2. Push the adjusting lever toward the wheel and
move it up or down to raise or lower the blade
height.
3. Release the lever in the appropriate notch.
4. Adjust the other three wheels. Make sure all four
wheels are at the same level.
Inmaim
* Be careful not to touch the muffler when adjust-
ing the right front wheel height.
The muffler will stay hot for a while after the en-
gine is stopped.
ADJUSTING LEVER
I
Y
ADJ”STkG LEVER
16
HR.21
