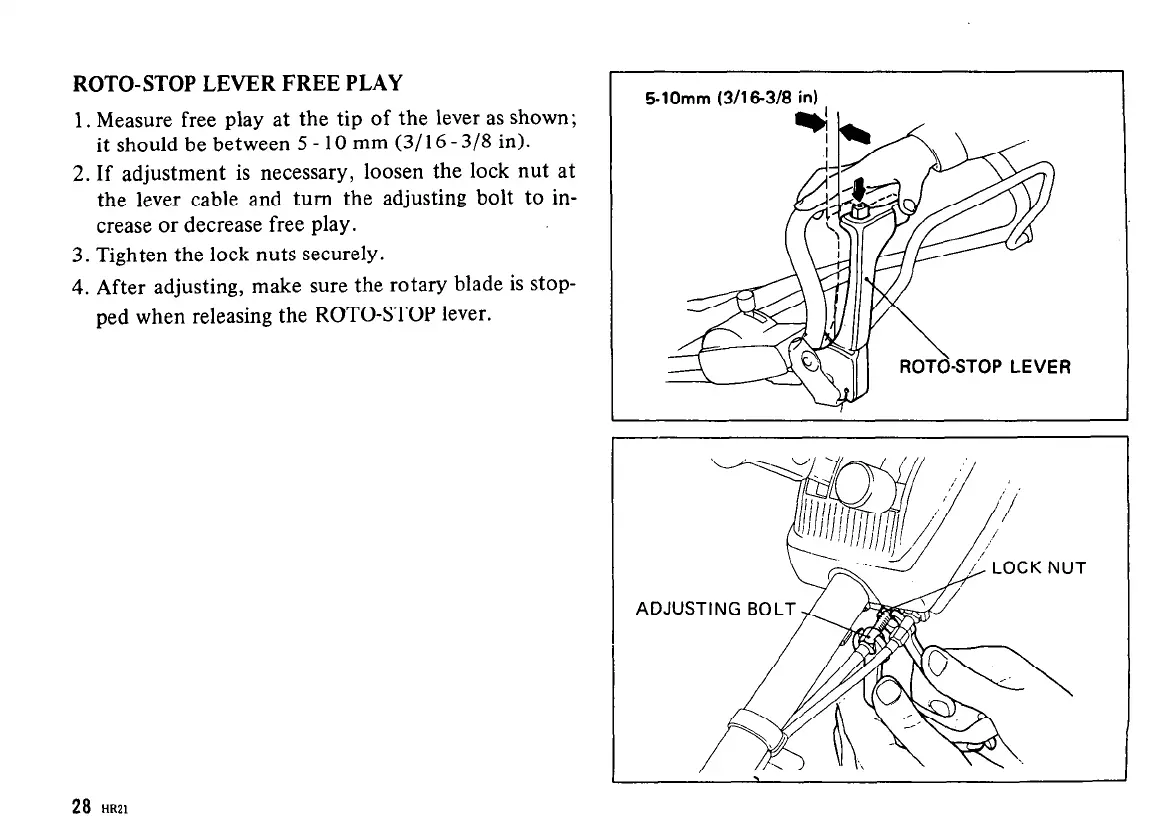

ROTO-STOP LEVER FREE PLAY
1. Measure free play at the tip of the lever as shown;
it should be between 5 - 10
mm
(3/ 16 - 3/8 in).
2. If adjustment is necessary, loosen the lock nut at
the lever cable and turn the adjusting bolt to in-
crease or decrease free play.
3. Tighten the lock nuts securely.
4. After adjusting, make sure the rotary blade is stop-
ped when releasing the ROTO-STOP lever.
5-10mm (3/15-3/8 in)
-STOP LEVER
ADJUSTING BOL
28
HRZI
