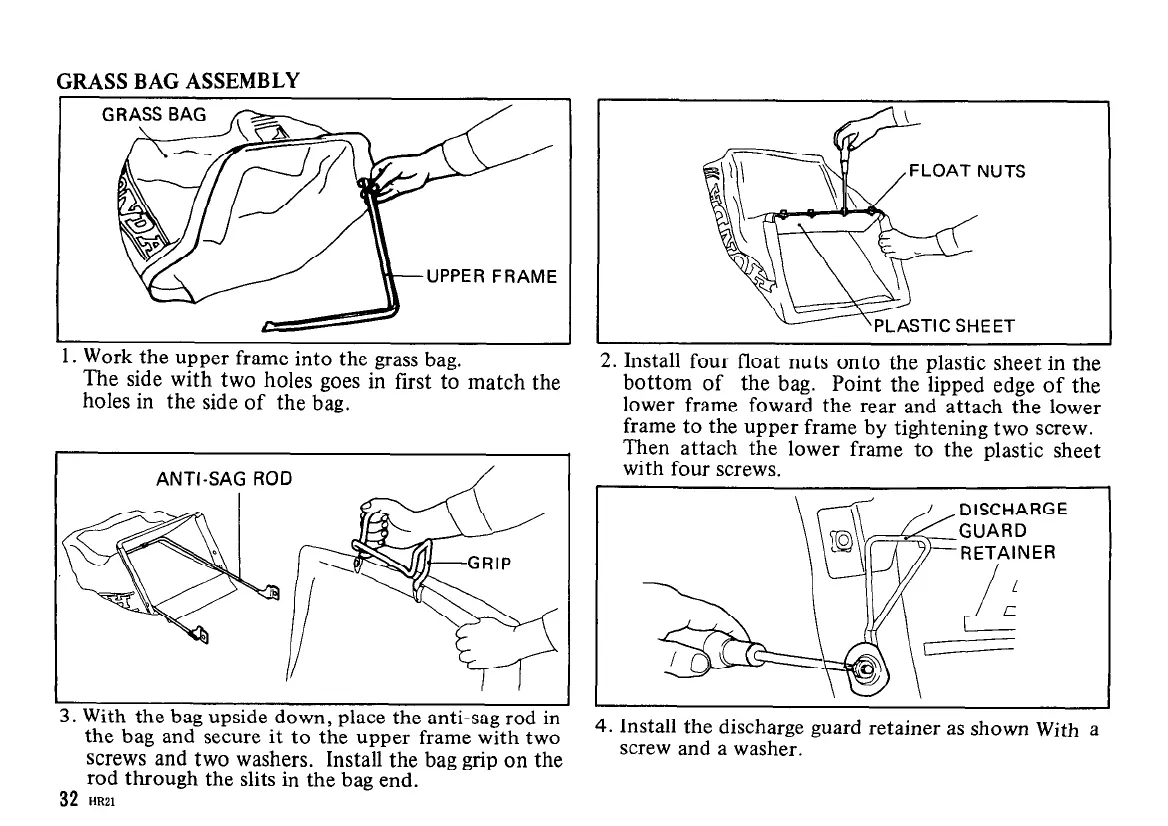

GRASS BAG ASSEMBLY
UPPER FRAME
I. Work the upper frame into the grass bag.
The side with two holes goes in first to match the
holes in the side of the bag.
ANTI-SAG ROD
/
3. With the bag upside down, place the anti-sag rod in
the bag and secure it to the upper frame with two
screws and two washers. Install the bag grip on the
rod through the slits in the bag end.
32
HR21
FLOAT NUTS
2. Install four float nuts onto the plastic sheet in the
bottom of the bag. Point the lipped edge of the
lower frame foward the rear and attach the lower
frame to the upper frame by tightening two screw.
Then attach the lower frame to the plastic sheet
with four screws.
4. Install the discharge guard retainer as shown With a
screw and a washer.
