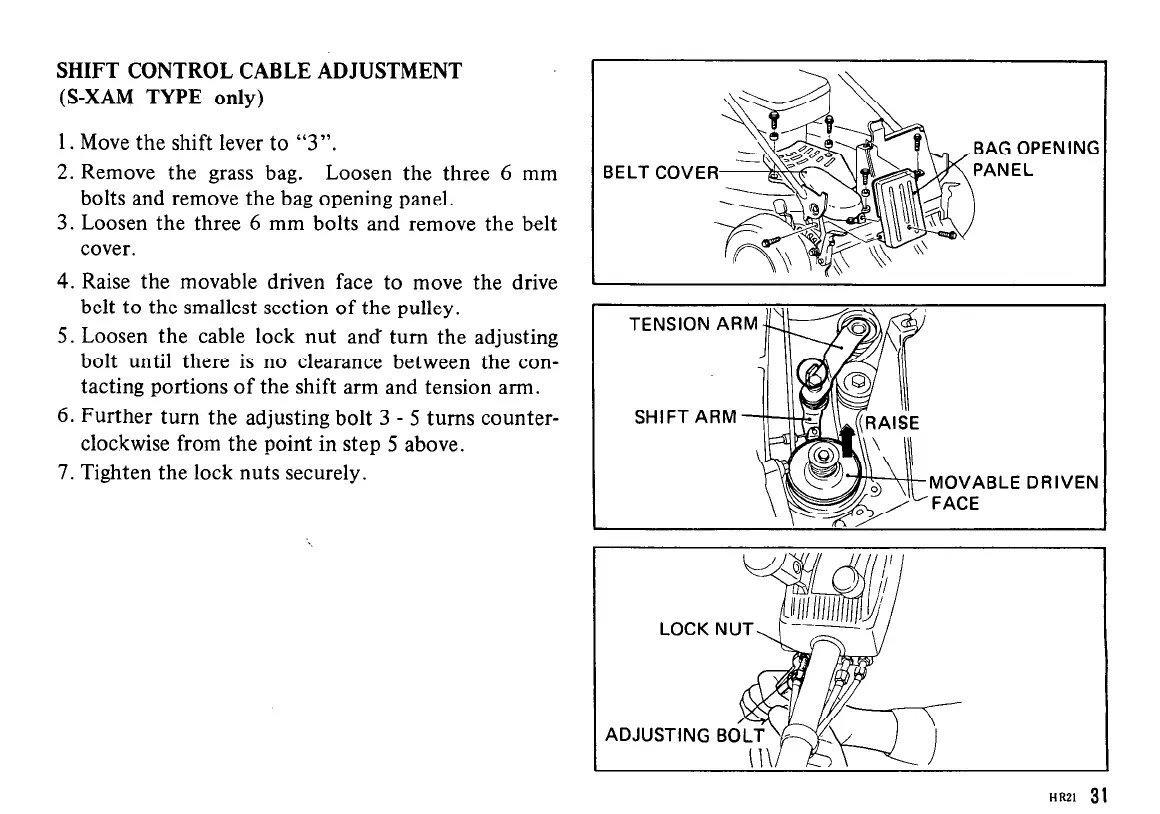

SHIFT CONTROL CABLE ADJUSTMENT
(S-XAM TYPE only)
1. Move the shift lever to “3”.
2. Remove the grass bag. Loosen the three 6 mm
bolts and remove the bag opening panel.
3. Loosen the three 6 mm bolts and remove the belt
cover.
4. Raise the movable driven face to move the drive
belt to the smallest section of the pulley.
5. Loosen the cable lock nut and turn the adjusting
bolt until there is no clearance between the con-
tacting portions of the shift arm and tension arm.
6. Further turn the adjusting bolt 3 - 5 turns counter-
clockwise from the point in step 5 above.
7. Tighten the lock nuts securely.
AG OPENING
BELT COVE
ANEL
MOVABLE DRIVEN
LOCK
I--
ADJUSTING
i
A
HRZl
31
