NOTE:
1
The following adjustments should be performed by
an authorized Honda dealer unless the owner has the
proper tools and is mechanically proficient.

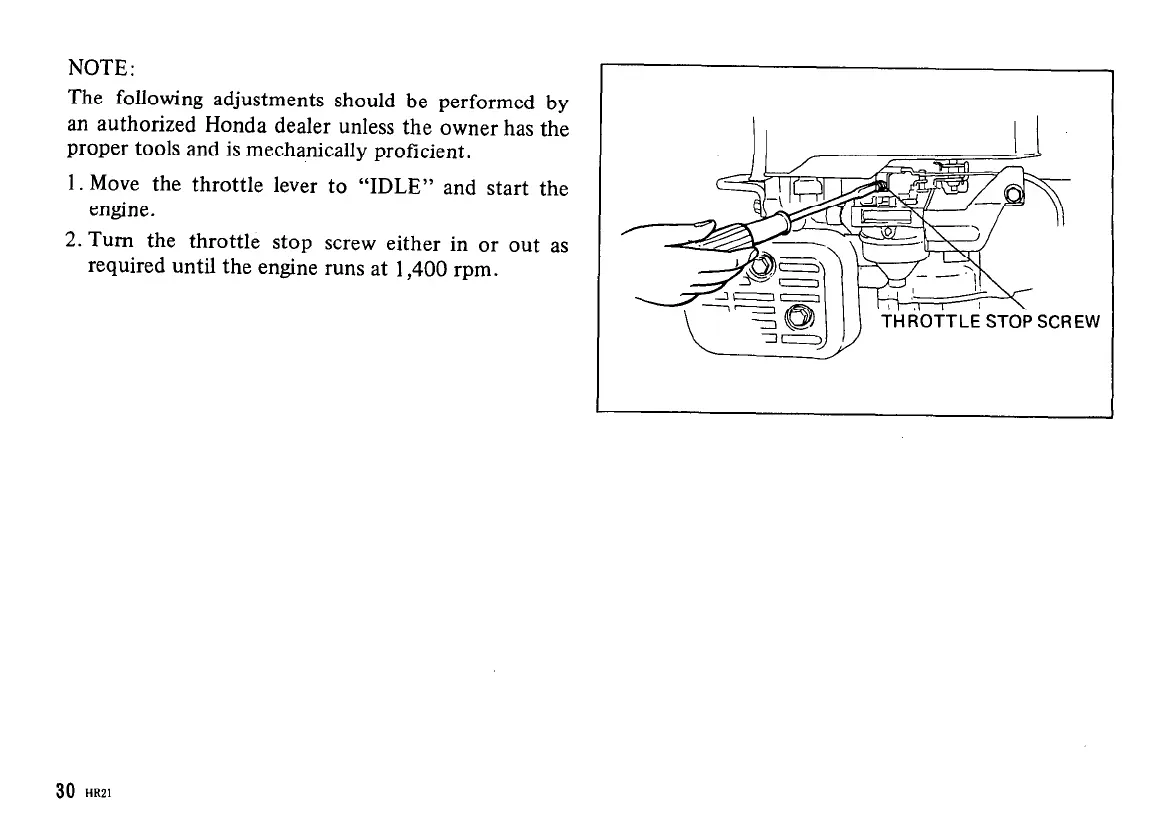

1. Move the throttle lever to “IDLE” and start the
engine.
2. Turn the throttle stop screw either in or out as
required until the engine runs at 1,400 rpm.
THROTTLE STOP SCREW
30
HRZl
