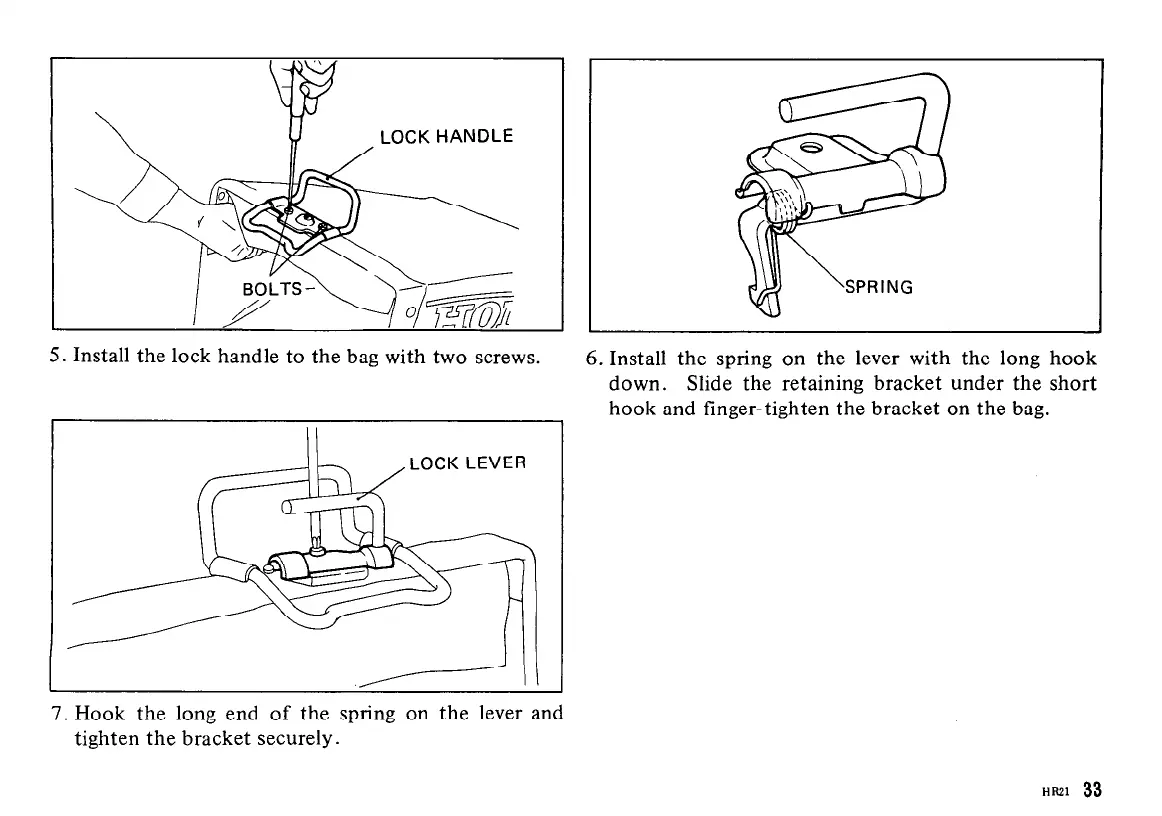

LOCK HANDLE
5. Install the lock handle to the bag with two screws.
LOCK LEVER
I
7. Hook the long end of the spring on the lever and
tighten the bracket securely.
6. Install the spring on the lever with the long hook
down. Slide the retaining bracket under the short
hook and finger-tighten the bracket on the bag.
HR21
33
