Honda HS760 - Pre-Operation Check; Skid Plate and Scraper Adjustment

−−
−−
−−
−−
−
−
18
Skid plate, scraper
To prevent accidental starting, turn the engine switch to the OFF
position and disconnect the spark plug cap.
Do not use the snowblower on rough or uneven surfaces with the
auger ground clearance set for hard snow or surfaces.
This may cause serious damage to the snow throwing mechanism.

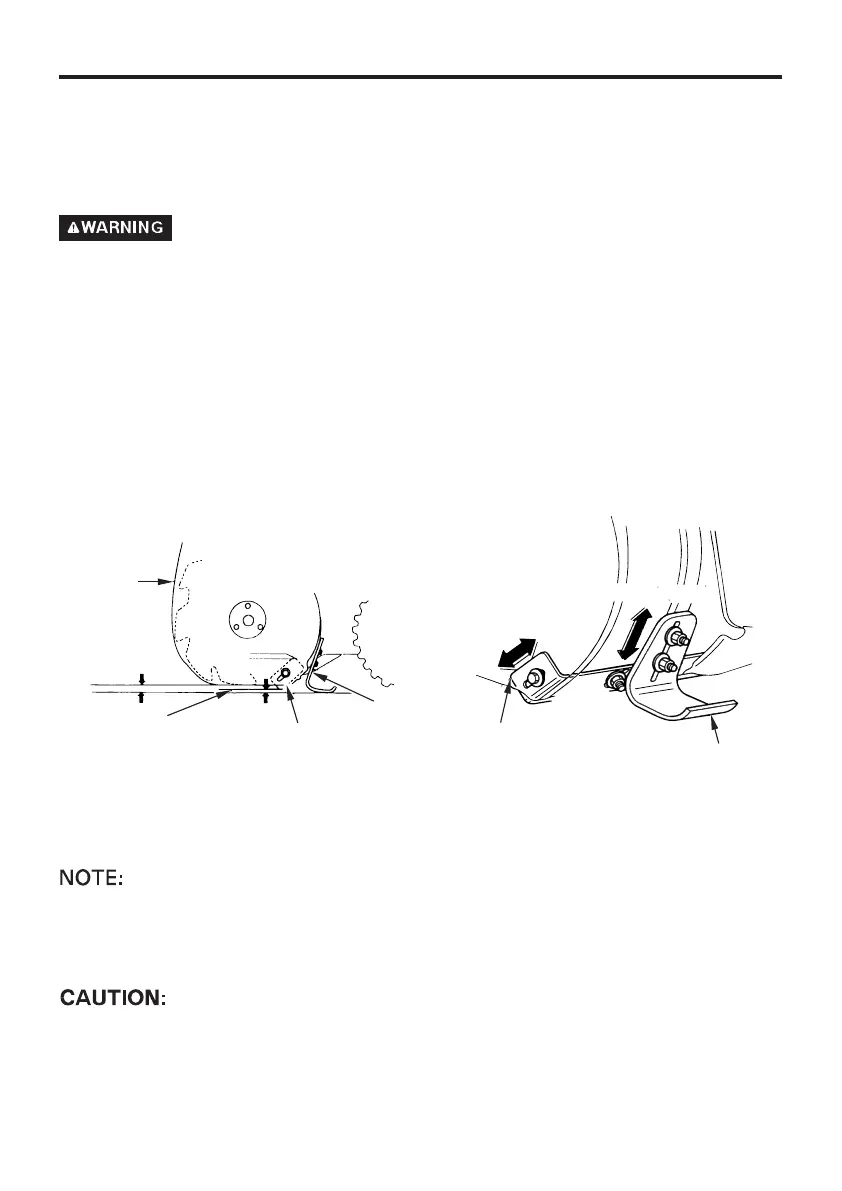

SKID PLATE
SCRAPER
AUGER
SCRAPER
SKID PLATE
2.0 4.0 mm
(0.08 0.16 in)
TTOO
RRAAIISSEE
TTOO LLOOWWEERR
Adjust the skid plates for the auger housing ground clearance best
suited to your snow removal conditions.
Move the skid plates up or down to obtain the desired auger
housing ground clearance.
For ordinary snow:
For finishing:
2.0 4.0 mm (0.08 0.16 in)
For use on uneven surfaces:
Adjust the scraper ground clearance to:
4.0 8.0 mm (0.16 0.31 in)
0 5.0 mm (0.0 0.20 in)
25.0 30.0 mm (0.98 1.18 in)
Adjust the skid plates equally on both sides.
Be sure to tighten the skid plate and scraper bolts securely after
making adjustments.
Place the snowblower on a level surface and set the height adjust
lever in the middle position.
1.
2.
3.
