Discharge distance adjustment Manual adjustment
(ETS, EWS)

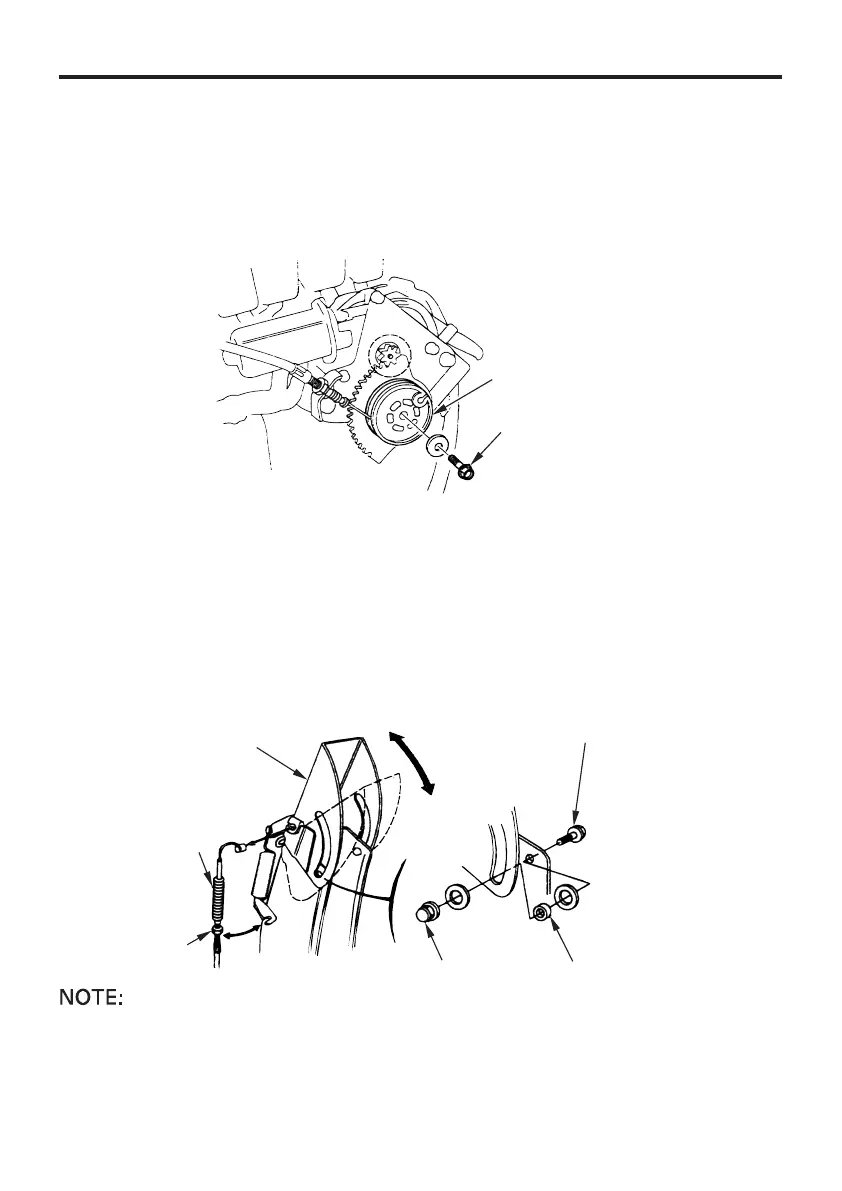

GEAR
CENTER BOLT
DISCHARGE
CHUTE GUIDE
GUIDE
CABLE
NUT
NUT COLLAR
BOLT
Have your snowblower inspected and repaired by your authorized
Honda dealer as soon as you complete the snow removal operation.
Remove the motor cover (page 57 ).
With the discharge chute guide held down, remove the gear by
removing the center bolt.
Remove the adjusting nut from the guide cable to free the guide
cable.
Remove the bolt and nut from both sides of the discharge chute
guide, and remove the collars.
Set the discharge chute at the desired angle, and reinstall the bolts
and nuts. Tighten securely.
Install the guide cable.
Reinstall the gear and motor cover.
