Honda HS760 - Page 70

−−
−−×
×
×
70

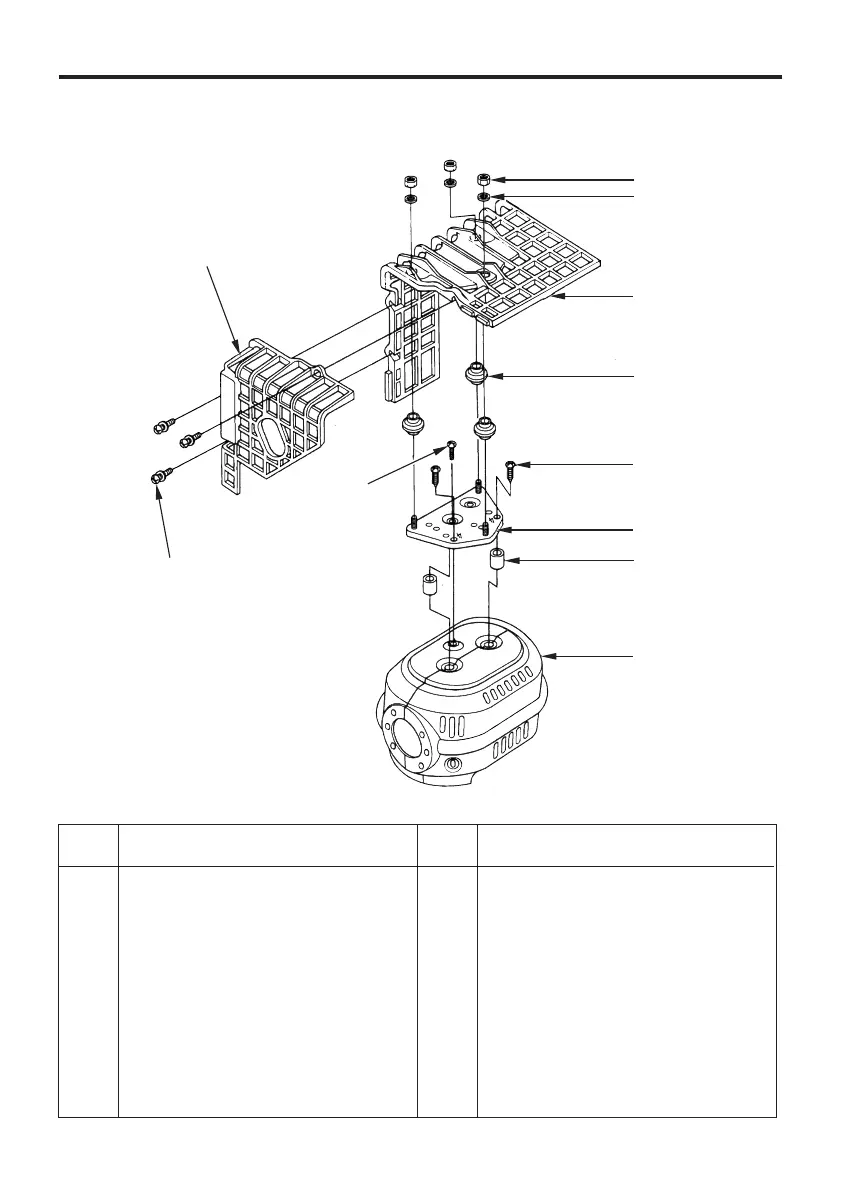

Installation procedure
(2)
(8)
(10)
(11)
(5)
(3)
(9)
(4)
(1)
(6)
(7)
(HS970)
NO.
1
2
3
4
5
6
7
8
9
10
11
QTY
1
1
1
3
2
3
3
3
2
1
1
REMARKS
0.35 0.5 kg·m (3.5 5 N·m)
0.2 0.3 kg·m (2 3 N·m)
NAME
MUFFLER PROTECTOR
REAR MUFFLER PROTECTOR
MUFFLER PROTECTOR BASE
MUFFLER PROTECTOR SPACER
AIR CLEANER CASE COLLAR
HEX NUT, 5mm
PLAIN WASHER, 5 mm
SCREW WASHER, 6 20
TAPPING SCREW, 5 25
PAN SCREW, 5 8
MUFFLER ASSY.
