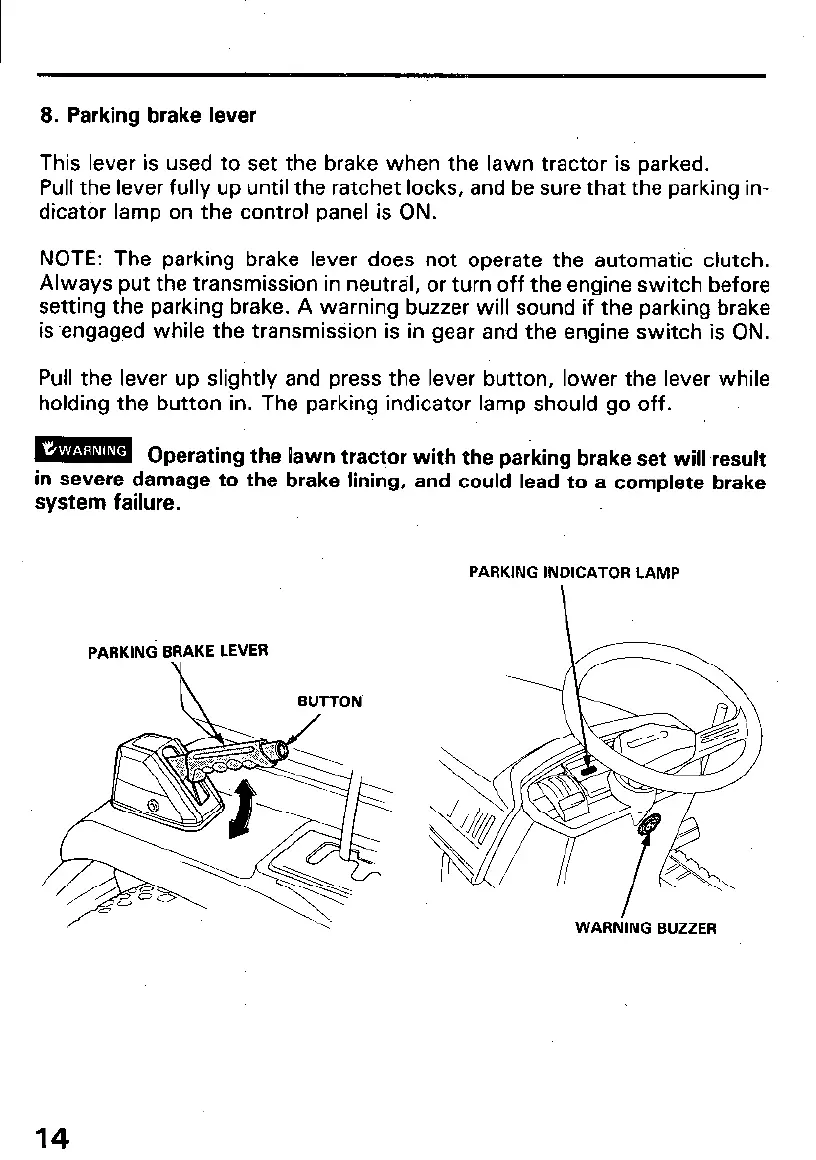

8. Parking brake lever
This lever is used to set the brake when the lawn tractor is parked.
Pull the lever fully up until the ratchet locks, and be sure that the parking in-
dicator lamp on the control panel is ON.
NOTE: The parking brake lever does not operate the automatic clutch.
Always put the transmission in neutral, or turn off the engine switch before
setting the parking brake. A warning buzzer will sound if the parking brake
is ‘engaged while the transmission is in gear and the engine switch is ON.
Pull the lever up slightly and press the lever button, lower the lever while
holding the button in. The parking indicator lamp should go off.
lami
Operating the Pawn tractor with the parking brake set will result
in severe damage to the brake lining, and coulb lead-to a complete brake
system failure.
PARKING INDICATOR LAMP
BUTTON
WARNING BUZZER
14
