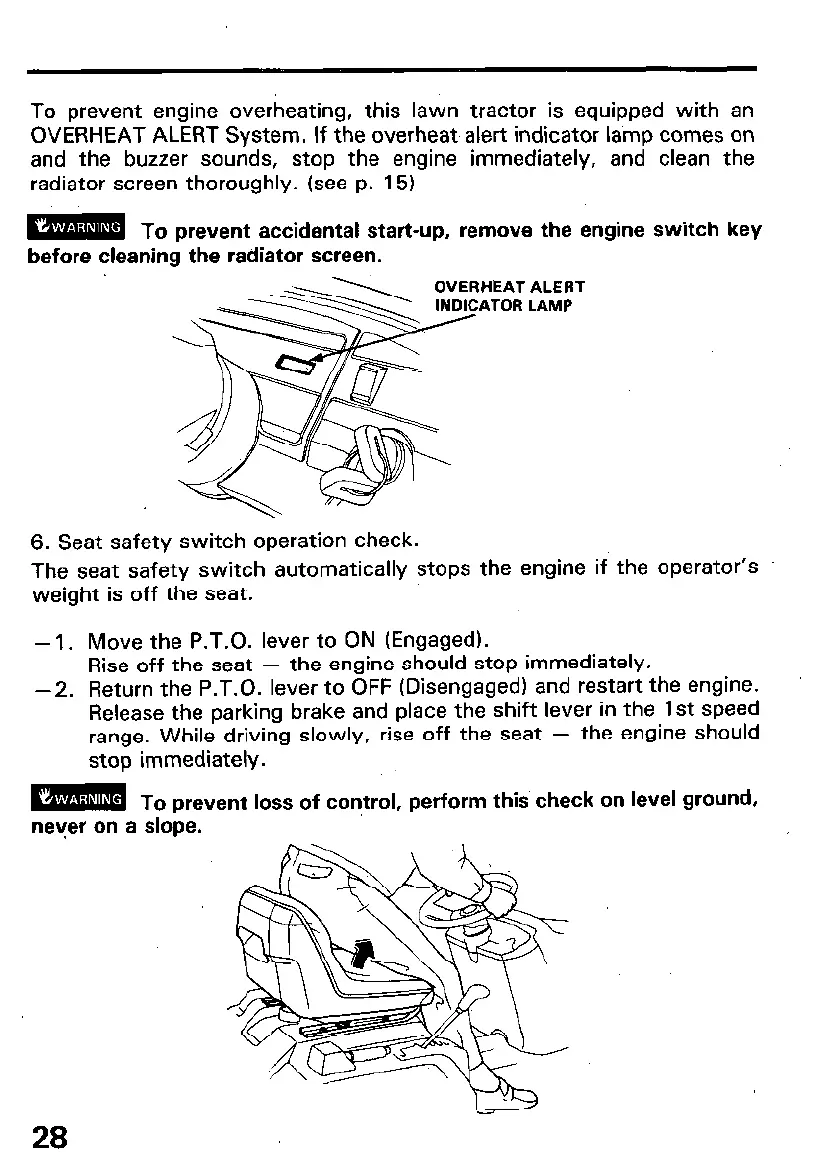

To prevent engine overheating, this lawn tractor is equipped with an
OVERHEAT ALERT System. If the overheat- alert indicator la’mp comes on
and the buzzer sounds, stop the engine immediately, and clean the
radiator screen thoroughly. (see p. 151
m
To prevent accidental start-up, remove the engine switch key
before cleaning the radiator screen.
’ ALERT
LAMP
6. Seat safety switch operation check.
The seat safety switch automatically stops the engine if the operator’s
weight is off the seat.
- 1. Move the P.T.O. lever to ON (Engaged).
Rise off the seat - the engine should stop immediately.
-2. Return the P.T.O. lever to OFF (Disengaged) and restart the engine.
Release the parking brake and place the shift lever in the 1st speed
range. While driving slowly, rise off the seat - the engine should
stop immediately.
mm!
To prevent loss of control, perform thig check on level ground,
never on a slope.
28
