3.
Make sure that the slot on the brake
caliper bracket is positioned in the lug on
the swingarm.
4.
Adjust the drive chain. 2 P. 99
5.
Install and tighten the rear axle nut.
Torque: 72 lbf·ft (98 N·m, 10.0 kgf·m)
6.
Tighten the drive chain adjusting bolts
lightly, then hold the adjusting bolts and
tighten the lock nuts.
Torque: 15 lbf·ft (21 N·m, 2.1 kgf·m)
7.
After installing the wheel, apply the brake
pedal several times, then check if the
wheel rotates freely. Recheck the wheel if
the brake drags or if the wheel does not
rotate freely.
Tire Puncture u Removing Wheels
Troubleshooting
120

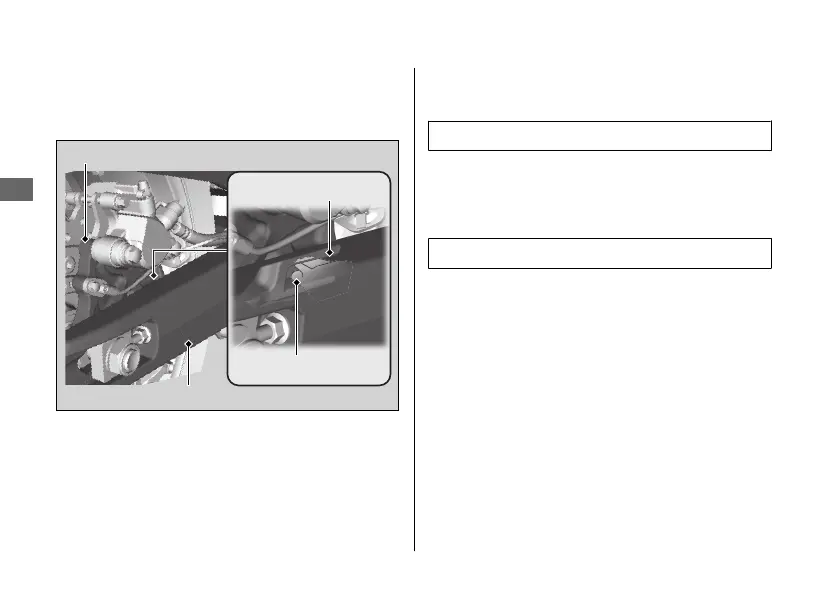

Lug
Swingarm
Brake caliper bracket
Slot
