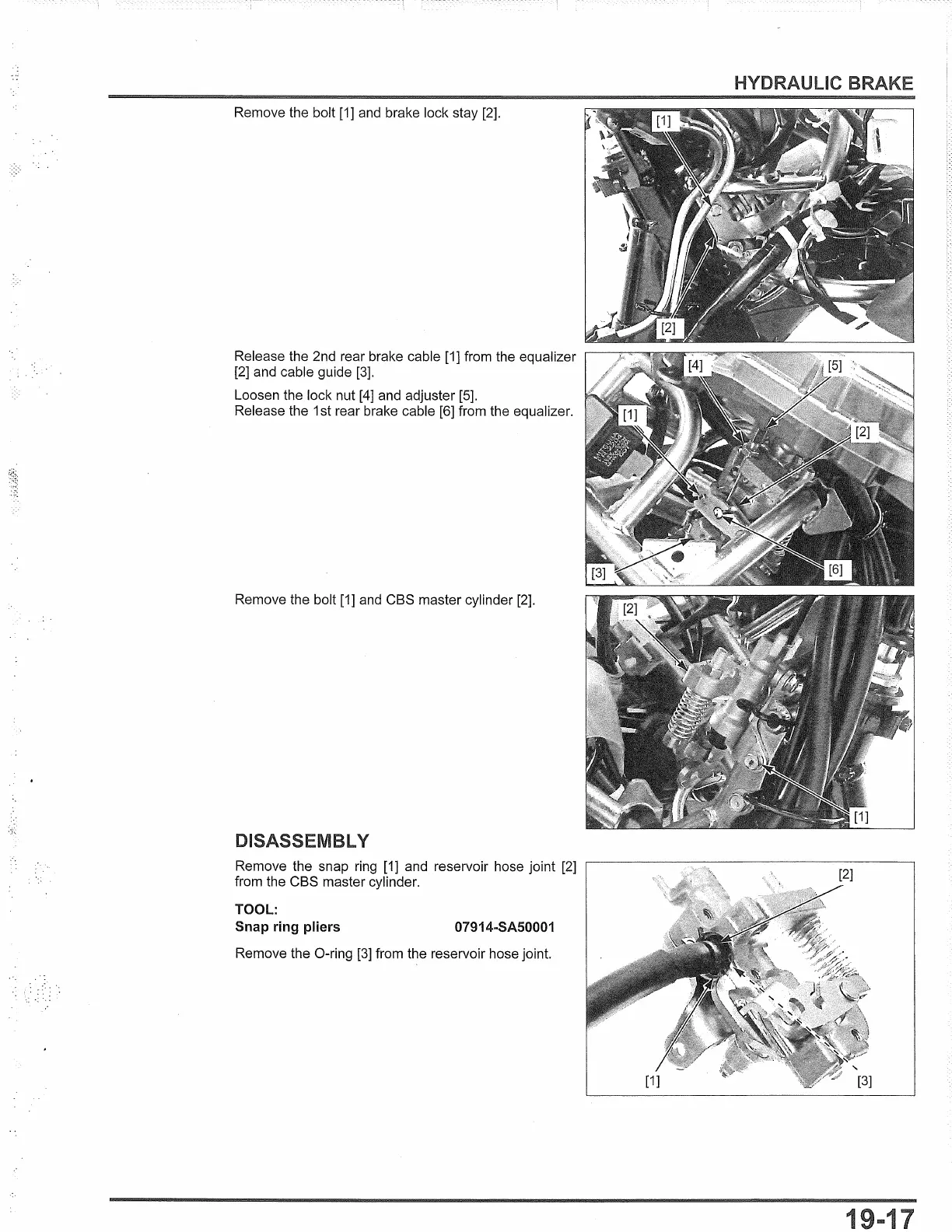

Remove the bolt [1] and brake lock stay [2].
Release the 2nd rear brake cable [1] from the equalizer
[2] and cable guide [3].
Loosen the lock nut [4] and adjuster [5].
Release the 1st rear brake cable [6] from the equalizer.
Remove the bolt
[1] and CBS master cylinder [2].
DISASSEMBLY
Remove the snap ring [1] and reservoir hose joint [2]
from the CBS master cylinder.
TOOL:
Snap ring pliers
07914-SA50001
Remove the 0-ring [3] from the reservoir hose joint.
1

Honda PCX150 2015 Specifications

General

Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Engine Type	Liquid-cooled, 4-stroke
Ignition	Fully transistorized
Front Suspension	Telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
