Honda SUBWOOFER KIT - Page 5

© 2005 American Honda Motor Co., Inc. - All Rights Reserved. AII 30529 (0509) 5 of 11

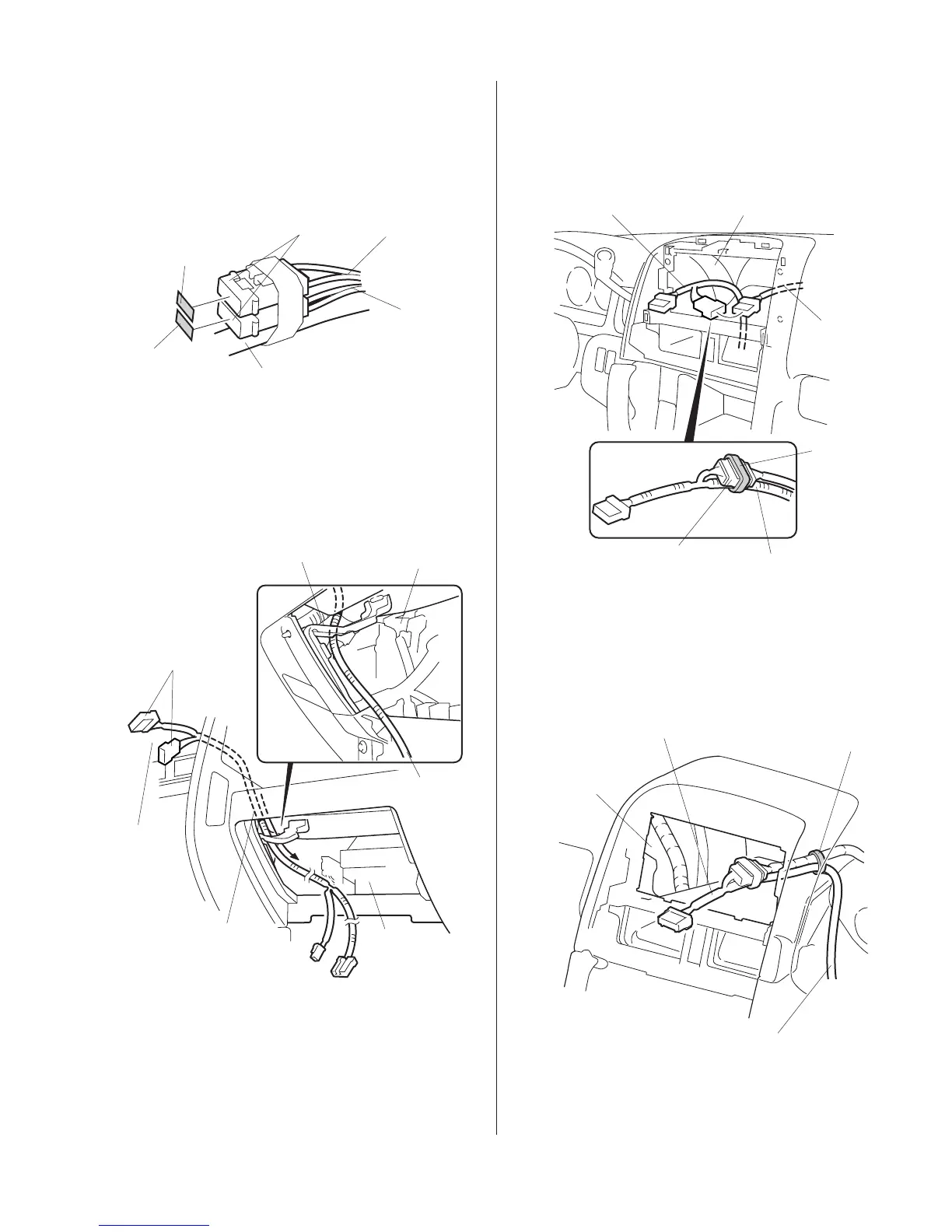

Routing the Subwoofer Harness
16. Attach the two fuse labels (“OPTION 7.5A”
“OPTION 2A”) to the fuse holder on the
subwoofer harness as shown.
17. Route the subwoofer harness 20-pin connector
up to the audio unit opening in the dashboard,
then route the subwoofer harness to the glove
box opening.
4628030
K
SUBWOOFER
HARNESS
VEHICLE
FRAME
GLOVE BOX
OPENING
20-PIN
CONNECTOR
AUDIO
UNIT
OPENING
SUBWOOFER
HARNESS
GLOVE BOX
OPENING
18. At the audio unit opening, connect the subwoofer
harness 20-pin connector to the vehicle 20-pin
connector, then secure the connector to the
harness with one wire tie in the area shown.
4413120K
SUBWOOFER
HARNESS
AUDIO UNIT
OPENING
VEHICLE
20-PIN
HARNESS
WIRE TIE
VEHICLE 20-PIN
CONNECTOR
SUBWOOFER
HARNESS 20-PIN
CONNECTOR
19. At the audio unit opening, secure the subwoofer
harness to the vehicle harness using one wire tie
in the area shown.
4628040
K
AUDIO UNIT
OPENING
SUBWOOFER
HARNESS
WIRE TIE
VEHICLE
HARNESS
4531040
M
FUSE
HOLDER
FUSE
LABEL
(2A)
FUSE
LABEL
(7.5 A)
YELLOW WIRE
AND GREEN WIRE
WHITE WIRE
AND RED WIRE
SUBWOOFER
HARNESS
