Honda SUBWOOFER KIT - Page 7

© 2005 American Honda Motor Co., Inc. - All Rights Reserved. AII 30529 (0509) 7 of 11

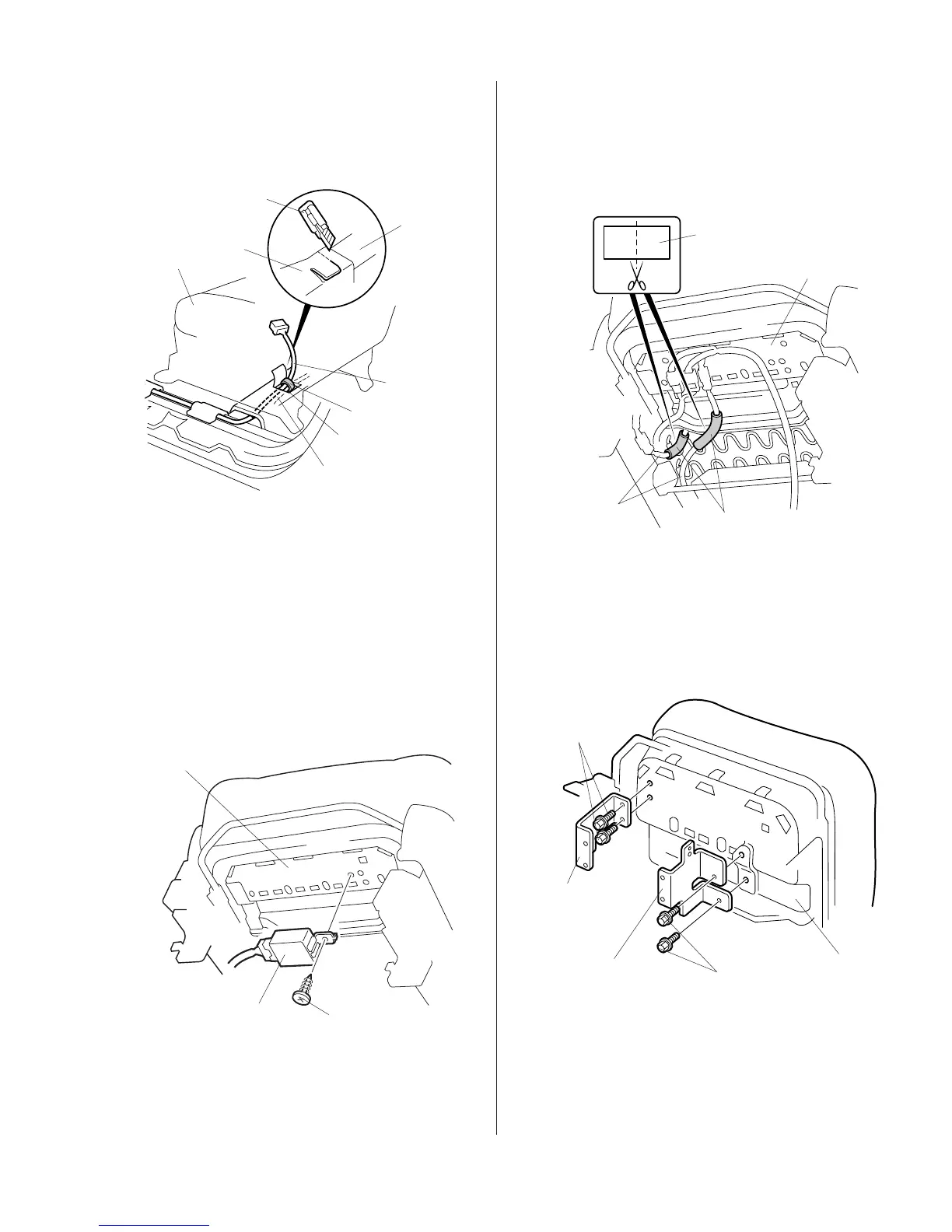

26. Using a utility knife, cut into the floor carpet at the
end of the cross member. Be careful not to
damage the wire harnesses routed under the floor
carpet.
4714051
M
FLOOR CARPET
OPENING
WIRE TIE
VEHICLE
HARNESS
SUBWOOFER
HARNESS
CROSS
MEMBER
UTILITY
KNIFE
FLOOR
CARPET
DRIVER’S
SEAT
27. Pull up the floor carpet, and route the subwoofer
harness under the floor carpet at the cross
member, and out through the cut you made in the
floor carpet as shown.
28. Secure the subwoofer harness to the vehicle
harness using one wire tie in the area shown.
29. SE models only: Remove the heated seat relay
from the driver’s seat panel (one self-tapping
screw, and unplug the vehicle connector).
Installing the Subwoofer
30. Using scissors, cut one EPT sealer in half. Wrap
the two pieces of EPT sealer around the two
vehicle harnesses in the positions where they
contact the edge of the seat panel.
BOLT
4720011M
EPT
SEALER
VEHICLE
HARNESS
EPT SEALER
(Cut in half.)
DRIVER’S
SEAT PANEL
4N18500
K
SELF-
TAPPING
SCREW
(Discard.)
HEATED SEAT
RELAY
DRIVER’S
SEAT PANEL
31. Position the right and left brackets on the seat
panel under the driver’s seat, and install the four
6 x 12 mm washer-bolts.
4413171
K
6 x 12 mm
WASHER-
BOLT
RIGHT
SUBWOOFER
BRACKET
LEFT
SUBWOOFER
BRACKET
6 x 12 mm
WASHER-
BOLT
SEAT PANEL
