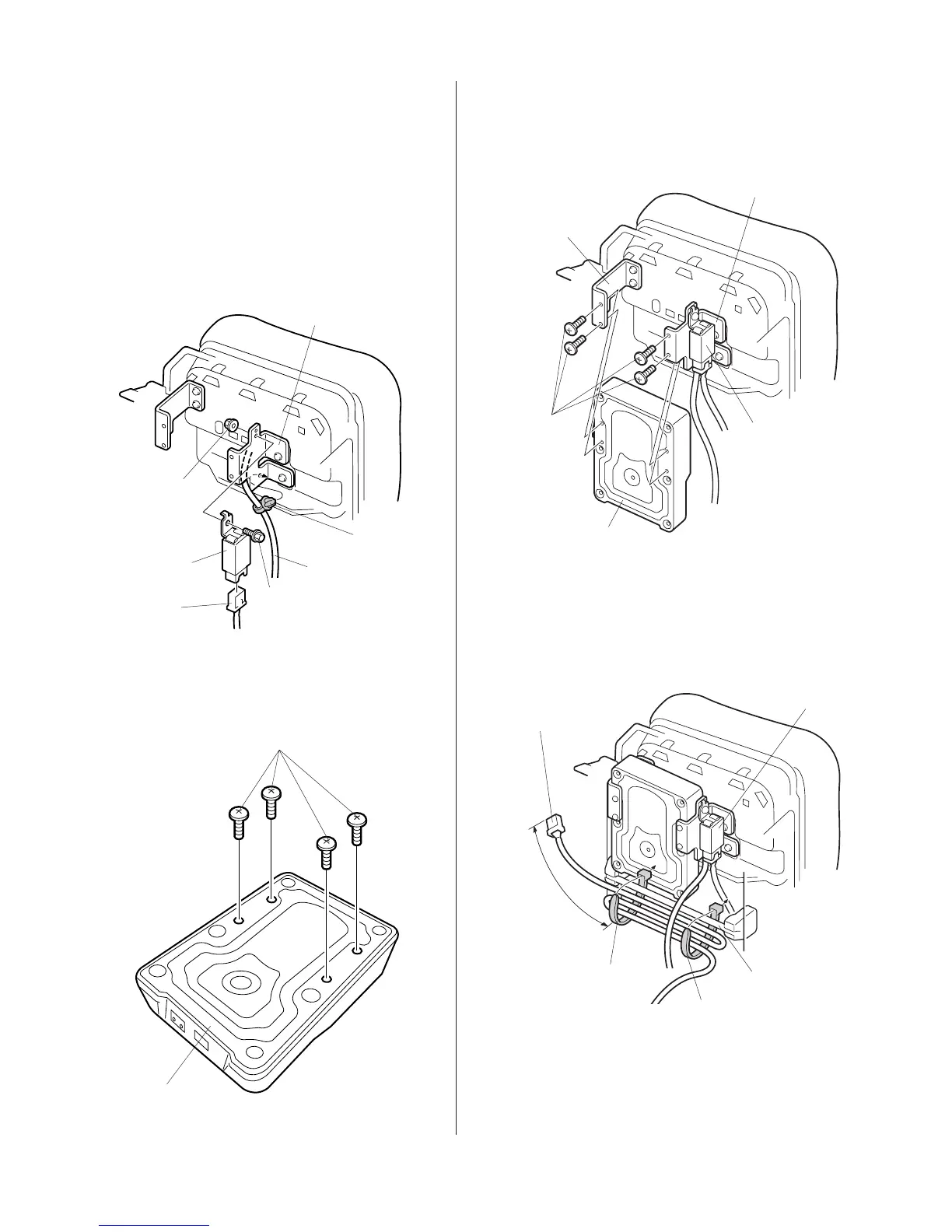

32. Secure the vehicle harness to the left subwoofer
bracket with one wire tie with clip in the area
shown.
SE Models:
• Install the heated seat relay on the left
subwoofer bracket with one 5 x 10 mm
washer-bolt and 5 mm flange nut in the area
shown, and plug the vehicle connector into the
heated seat relay.
4N18511
K
LEFT SUBWOOFER
BRACKET
5 mm FLANGE NUT
(With heated seat)
HEATED SEAT
RELAY
(With heated seat)
5 x 10 mm
WASHER-BOLT
(With heated seat)
VEHICLE
HARNESS
WIRE TIE
WITH CLIP
VEHICLE
CONNECTOR
33. Remove the four screws from the subwoofer.
4413181
K
SCREW
(Reuse.)
SUBWOOFER
35. Secure the subwoofer harness to the driver’s seat
frame with two wire ties in the areas shown.
34. Install the subwoofer to the subwoofer brackets
attached to the bottom of the driver’s seat with
four screws.
4N19502
K
SCREW
(Reuse.)
SUBWOOFER
RIGHT
SUBWOOFER
BRACKET
LEFT
SUBWOOFER
BRACKET
(HEATED
SEAT RELAY)
4N19512
K
DRIVER’S
SEAT FRAME
WIRE TIE
WIRE TIE
200 mm
SUBWOOFER
HARNESS
(HEATED
SEAT RELAY)
