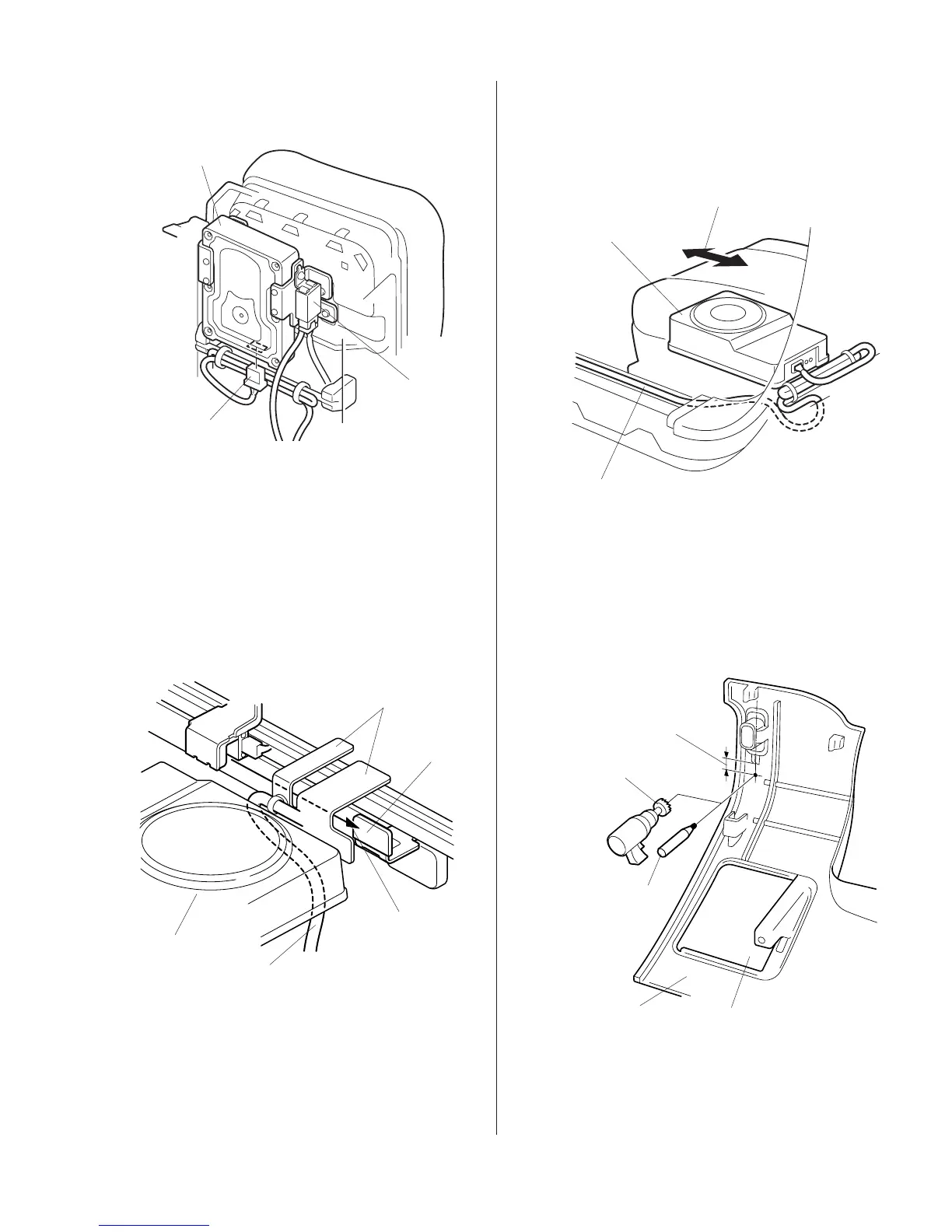

40. Using a tape measure and a felt-tip pen, measure
and mark the driver’s dashboard lower cover as
shown. Lightly center-punch the mark.
4607500
K
LEFT
SUBWOOFER
BRACKET
VEHICLE
SENSOR
Do not pinch the
vehicle harness
when sliding the
seat back and
forth.
VEHICLE
HARNESS
SUBWOOFER
37. Reinstall the front driver’s seat. Torque the seat
bolts to 32 to 38 N·m (24 to 28 lb-ft).
38. Remove the slack in the vehicle harness to
prevent the harness from being pinched by the
vehicle sensor when sliding the seat back and
forth.
4729010
K
LID OPENING
DRIVER’S
DASHBOARD
LOWER COVER
15 mm
HOLE SAW
13/16" (20 mm)
CENTER-
PUNCH
4414021
K
SUBWOOFER
SUBWOOFER
HARNESS
Check that the subwoofer harness
is not pulled too tight when the
seat is moved back and forth.
36. Plug the subwoofer harness connector into the
subwoofer.
4N19522
K
SUBWOOFER
SUBWOOFER
HARNESS
CONNECTOR
(HEATED SEAT
RELAY)
39. Slide the front driver’s seat back and forth to
check that the subwoofer harness is not pulled too
tight or is too loose.
