Honda Wave 110i User Manual

77
Maintenance
Other Adjustments

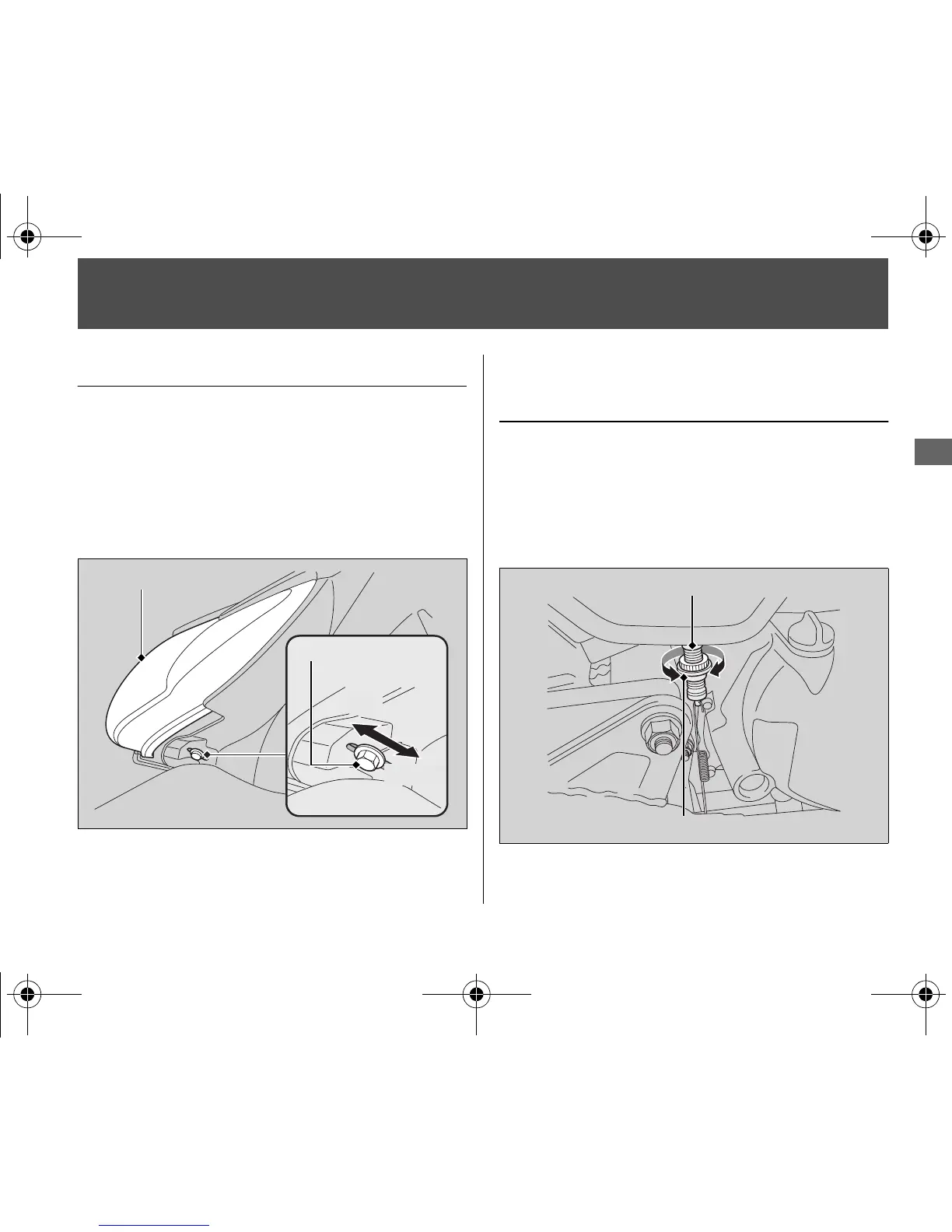

Adjusting the Headlight Aim
You can adjust vertical aim of the headlight
for proper alignment. Loosen the adjusting
bolt and move the headlight up or down as
necessary.
Tighten the adjusting bolt after adjustment.
Obey local laws and regulations.
Adjusting the Brakelight
Switch
Check the operation of the brakelight switch.
Turn the adjusting nut in the direction A if
the switch operates too late, or turn the nut
in the direction B if the switch operates too
soon.
Headlight
Adjusting bolt
Up
Down
Brakelight switch
Adjusting nut
12 AFS110-32KWWH00.book 77 ページ ２０１１年１０月２６日 水曜日 午後５時２２分
http://www.motorcycle.in.th

Honda Wave 110i Specifications

General

Displacement	109.5 cc
Bore x Stroke	50.0 mm x 55.6 mm
Compression Ratio	9.0:1
Fuel System	PGM-FI (Programmed Fuel Injection)
Transmission	4-speed
Starter	Electric and kick
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Brake	Drum
Front Tire	70/90-17M/C 38P
Rear Tire	80/90-17M/C 50P
Ground Clearance	135 mm
Engine Type	4-stroke
Rear Suspension	Twin shock
Front Brake	Disc
Ignition System	Full Transistorized
